SDO HMI 2011-08-25 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.68 | 16.36 | 2.95 | 12.51 | 16.46 | 328.18 | -49.88 | 74.34 | 0.7629 | -29.0 | 61.0 | |
|
previous
or next observation for the same group /

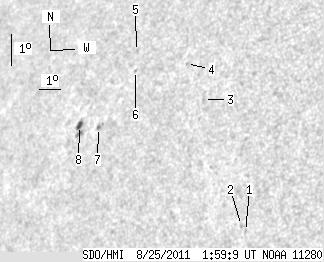

back to the solar disc SDO HMI 2011-08-25 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 1.04 | 13.81 | 334.47 | -43.58 | 77.31 | 0.6886 | -616.0 | -519.9 | |
| 0.00 | 1.26 | 0.00 | 0.86 | 13.98 | 334.26 | -43.80 | 77.09 | 0.6913 | -665.0 | -573.2 | |
| 0.00 | 1.35 | 0.00 | 0.97 | 17.65 | 331.50 | -46.56 | 72.31 | 0.7285 | -594.0 | -456.4 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 18.68 | 330.34 | -47.72 | 71.11 | 0.7431 | -605.0 | -451.8 | |
| 0.00 | 0.99 | 0.00 | 0.76 | 18.83 | 327.83 | -50.23 | 71.30 | 0.7703 | 134.0 | 112.4 | |
| 0.00 | 1.08 | 0.00 | 0.83 | 18.25 | 328.01 | -50.05 | 72.03 | 0.7676 | -467.0 | -344.8 | |
| 0.00 | 1.35 | 0.00 | 1.06 | 16.36 | 326.87 | -51.19 | 74.60 | 0.7777 | 745.0 | 663.0 | |
| 3.68 | 7.99 | 2.95 | 6.39 | 16.33 | 325.91 | -52.15 | 74.72 | 0.7878 | 603.1 | 530.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
