groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11271 107.64 475.81 74.96 332.19 17.70 60.82 44.41 288.22 0.7036 -116.4 6.7


previous   or   next   observation for the same group / back to the solar disc

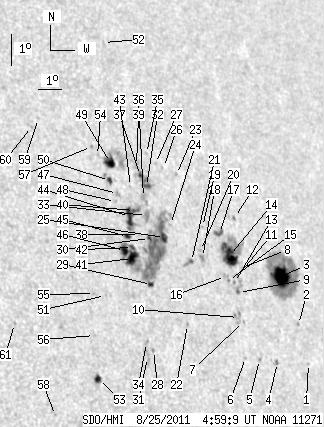

SDO HMI 2011-08-25 04:59:09 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.99 0.00 0.74 13.83 65.11 48.70 282.28 0.7488 -577.0 -407.1
2 0.00 1.26 0.00 0.94 15.05 64.99 48.58 283.92 0.7483 414.0 391.7
3 21.83 109.32 16.18 81.15 16.57 64.67 48.25 285.98 0.7462 -986.6 -215.6
4 0.72 2.61 0.52 1.89 13.99 63.70 47.29 282.59 0.7328 -462.0 -472.5
5 0.00 1.44 0.00 1.03 14.15 62.92 46.50 282.88 0.7239 -608.0 -509.7
6 0.00 0.99 0.00 0.70 14.26 62.31 45.90 283.10 0.7168 -686.0 -564.5
7 0.00 1.17 0.00 0.83 15.36 62.52 46.11 284.60 0.7204 -404.0 -367.5
8 0.00 1.17 0.00 0.84 17.00 62.98 46.56 286.80 0.7276 -178.0 -124.8
9 1.35 5.30 0.96 3.79 16.26 62.56 46.15 285.83 0.7219 -664.9 -530.3
10 0.00 6.11 0.00 4.33 15.50 62.34 45.92 284.82 0.7184 -698.0 -618.6
11 0.00 1.71 0.00 1.22 16.78 62.67 46.26 286.53 0.7239 -585.0 -457.4
12 0.00 1.62 0.00 1.17 18.55 63.13 46.72 288.88 0.7317 441.0 269.2
13 0.00 1.62 0.00 1.15 16.57 62.47 46.06 286.29 0.7213 -748.0 -622.9
14 21.02 45.99 15.02 32.95 17.41 62.51 46.10 287.44 0.7229 -814.0 -145.0
15 0.00 1.17 0.00 0.83 16.66 62.23 45.81 286.44 0.7185 -662.0 -672.2
16 0.00 2.52 0.00 1.78 16.79 62.13 45.72 286.64 0.7176 -654.0 -551.1
17 3.59 5.03 2.56 3.59 18.12 62.29 45.87 288.45 0.7215 -716.0 -608.6
18 0.00 3.50 0.00 2.45 17.45 61.30 44.88 287.70 0.7089 -798.0 -691.5
19 0.00 0.99 0.00 0.70 18.40 61.60 45.19 288.96 0.7141 -686.0 -503.6
20 0.00 1.35 0.00 0.94 17.67 61.28 44.86 288.01 0.7091 -694.0 -513.9
21 1.71 4.04 1.18 2.80 17.37 60.78 44.36 287.68 0.7027 -783.2 -734.8
22 0.00 1.17 0.00 0.80 15.48 60.06 43.64 285.09 0.6912 358.0 324.5
23 0.00 1.26 0.00 0.88 20.08 61.01 44.59 291.43 0.7107 -622.0 -550.5
24 0.00 1.17 0.00 0.81 18.57 60.22 43.81 289.50 0.6984 -677.0 -484.0
25 5.30 144.44 3.63 97.71 18.20 59.84 43.42 289.05 0.6931 -511.4 273.0
26 0.00 0.63 0.00 0.44 20.34 60.51 44.10 291.92 0.7056 -550.0 -536.6
27 0.00 1.08 0.00 0.75 20.49 60.21 43.79 292.21 0.7025 -708.0 -586.2
28 0.00 0.99 0.00 0.66 14.80 58.43 42.01 284.35 0.6703 539.0 468.4
29 1.98 -25.00 1.33 -25.00 16.81 58.86 42.45 287.24 0.6788 -482.8 999999
30 1.89 -25.00 1.28 -25.00 18.22 59.19 42.77 289.22 0.6854 530.2 999999
31 0.00 5.30 0.00 3.51 14.61 58.13 41.72 284.11 0.6662 502.0 510.7
32 3.41 17.16 2.34 11.76 19.82 59.57 43.16 291.42 0.6935 408.5 -159.0
33 0.00 7.19 0.00 4.89 18.93 59.28 42.86 290.23 0.6880 309.0 294.9
34 0.00 2.43 0.00 1.61 15.07 58.20 41.78 284.79 0.6677 460.0 324.8
35 0.00 0.81 0.00 0.56 20.83 59.93 43.51 292.76 0.7001 -800.0 -658.4
36 0.00 6.29 0.00 4.29 19.49 59.33 42.91 291.02 0.6899 214.0 155.9
37 1.35 -32.00 0.92 -32.00 20.18 59.43 43.01 291.97 0.6927 -724.9 999999
38 0.00 0.90 0.00 0.61 18.38 58.80 42.38 289.54 0.6811 399.0 284.9
39 0.00 3.68 0.00 2.52 20.50 59.36 42.95 292.44 0.6928 -396.0 -215.2
40 1.08 23.36 0.73 15.76 19.13 58.81 42.40 290.62 0.6830 448.3 297.7
41 10.15 -25.00 6.78 -25.00 17.67 58.29 41.87 288.62 0.6734 838.9 999999
42 2.25 -25.00 1.50 -25.00 18.00 58.38 41.97 289.09 0.6753 399.5 999999
43 0.00 0.90 0.00 0.61 19.88 58.88 42.47 291.68 0.6856 262.0 129.4
44 7.55 -40.00 5.08 -40.00 18.96 58.54 42.13 290.45 0.6794 756.2 999999
45 2.61 4.40 1.74 2.95 18.36 58.27 41.86 289.63 0.6747 589.6 389.2
46 5.39 -25.00 3.59 -25.00 17.94 58.02 41.61 289.08 0.6708 971.2 999999
47 0.00 2.78 0.00 1.87 19.70 58.26 41.85 291.60 0.6778 754.0 576.3
48 0.00 1.26 0.00 0.84 19.47 58.10 41.68 291.30 0.6753 573.0 478.5
49 8.26 28.48 5.57 19.27 20.68 58.28 41.86 293.01 0.6806 698.4 -72.5
50 2.52 5.93 1.69 3.98 20.13 58.05 41.64 292.28 0.6765 666.0 605.9
51 0.00 0.99 0.00 0.65 16.63 56.86 40.45 287.39 0.6537 323.0 389.3
52 0.00 0.99 0.00 0.69 24.42 59.39 42.98 297.90 0.7047 -505.0 -382.6
53 3.68 5.30 2.36 3.40 14.10 55.99 39.58 283.66 0.6382 819.1 611.6
54 0.00 0.63 0.00 0.42 20.94 57.80 41.39 293.53 0.6758 454.0 394.9
55 0.00 0.90 0.00 0.58 16.72 56.43 40.02 287.63 0.6485 707.0 581.6
56 0.00 0.63 0.00 0.41 15.45 56.12 39.71 285.74 0.6420 537.0 456.3
57 0.00 1.17 0.00 0.78 21.24 57.64 41.23 294.01 0.6748 561.0 415.5
58 0.00 0.99 0.00 0.62 13.14 54.08 37.67 282.43 0.6116 688.0 568.7
59 0.00 0.99 0.00 0.65 22.27 55.72 39.30 296.20 0.6556 576.0 428.9
60 0.00 0.81 0.00 0.53 22.04 55.35 38.93 296.01 0.6504 635.0 471.7
61 0.00 0.90 0.00 0.56 16.05 53.04 36.63 287.41 0.6031 477.0 484.4


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
