SDO HMI 2011-08-25 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.98 | 0.00 | 10.21 | 18.86 | 356.58 | -19.83 | 56.02 | 0.3866 | -145.3 | -132.2 | |
|
previous
or next observation for the same group /

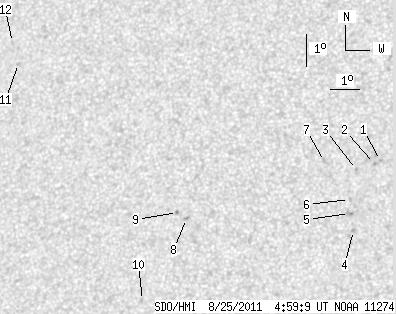

back to the solar disc SDO HMI 2011-08-25 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.57 | 19.77 | 0.67 | -15.74 | 48.65 | 0.3416 | -953.0 | -772.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 19.67 | 0.48 | -15.93 | 49.20 | 0.3429 | -1062.0 | -806.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 19.46 | 359.90 | -16.51 | 50.63 | 0.3482 | -754.0 | -635.7 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 17.57 | 359.99 | -16.43 | 55.16 | 0.3299 | -903.0 | -716.4 | |
| 0.00 | 3.32 | 0.00 | 1.75 | 18.09 | 359.81 | -16.61 | 54.10 | 0.3369 | -1014.0 | -764.8 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 18.53 | 359.76 | -16.65 | 53.09 | 0.3413 | -621.0 | -517.5 | |
| 0.00 | 1.89 | 0.00 | 1.00 | 19.67 | 358.80 | -17.61 | 51.81 | 0.3641 | -122.0 | -246.7 | |
| 0.00 | 2.34 | 0.00 | 1.27 | 17.73 | 354.34 | -22.07 | 61.54 | 0.4089 | 1079.0 | 748.5 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 17.90 | 354.01 | -22.41 | 61.47 | 0.4146 | 832.0 | 674.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 15.14 | 353.15 | -23.26 | 68.44 | 0.4117 | 536.0 | 477.6 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 22.23 | 347.54 | -28.87 | 58.29 | 0.5274 | 630.0 | 593.4 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 22.87 | 347.17 | -29.25 | 57.46 | 0.5361 | 608.0 | 490.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
