SDO HMI 2011-08-25 06:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 7.01 | 0.70 | 3.74 | 18.58 | 356.93 | -18.39 | 54.86 | 0.3646 | 253.1 | -28.3 | |
|
previous
or next observation for the same group /

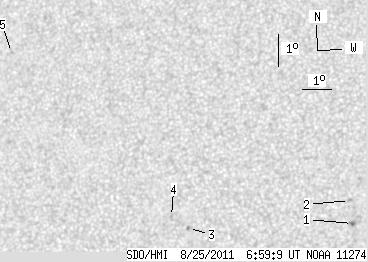

back to the solar disc SDO HMI 2011-08-25 06:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 2.78 | 0.70 | 1.46 | 18.03 | 359.81 | -15.51 | 52.51 | 0.3219 | -853.6 | -801.2 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 18.74 | 359.64 | -15.68 | 51.00 | 0.3307 | -667.0 | -599.7 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 17.68 | 354.34 | -20.98 | 60.57 | 0.3933 | 962.0 | 814.9 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 18.02 | 353.72 | -21.60 | 60.41 | 0.4043 | 819.0 | 631.1 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 22.83 | 347.17 | -28.15 | 56.70 | 0.5223 | 673.0 | 601.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
