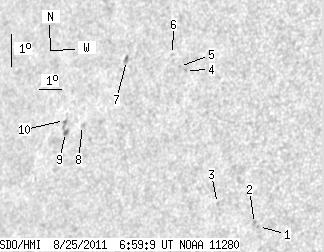

SDO HMI 2011-08-25 06:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.79 | 18.43 | 2.10 | 13.16 | 16.41 | 329.14 | -46.18 | 73.96 | 0.7214 | -170.5 | -131.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-25 06:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.75 | 13.79 | 335.30 | -40.02 | 76.89 | 0.6435 | -646.0 | -542.7 | |
| 0.00 | 1.89 | 0.00 | 1.22 | 13.87 | 335.12 | -40.20 | 76.79 | 0.6459 | -733.0 | -629.1 | |
| 0.00 | 1.35 | 0.00 | 0.89 | 14.35 | 333.47 | -41.84 | 76.29 | 0.6675 | -612.0 | -503.9 | |
| 0.00 | 0.90 | 0.00 | 0.62 | 18.28 | 331.01 | -44.31 | 71.02 | 0.7038 | -712.0 | -498.8 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 18.38 | 330.70 | -44.62 | 70.94 | 0.7075 | -500.0 | -449.5 | |
| 0.00 | 1.17 | 0.00 | 0.82 | 18.72 | 330.27 | -45.05 | 70.56 | 0.7131 | -488.0 | -375.2 | |
| 0.00 | 3.14 | 0.00 | 2.29 | 18.36 | 328.27 | -47.05 | 71.43 | 0.7351 | -600.0 | -401.3 | |
| 0.00 | 1.71 | 0.00 | 1.27 | 16.21 | 326.92 | -48.40 | 74.51 | 0.7474 | 742.0 | 602.5 | |
| 2.34 | 6.20 | 1.76 | 4.67 | 15.93 | 326.20 | -49.12 | 74.96 | 0.7551 | 552.6 | 477.3 | |
| 0.45 | -9.00 | 0.34 | -9.00 | 16.29 | 326.03 | -49.29 | 74.51 | 0.7573 | 510.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
