SDO HMI 2011-08-25 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.88 | 19.87 | 2.13 | 14.10 | 16.55 | 329.11 | -45.66 | 73.69 | 0.7159 | -267.6 | -173.0 | |
|
previous
or next observation for the same group /

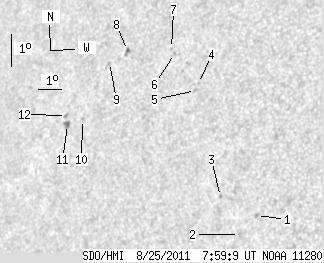

back to the solar disc SDO HMI 2011-08-25 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.98 | 13.88 | 335.10 | -39.67 | 76.70 | 0.6391 | -782.0 | -673.6 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 13.25 | 334.53 | -40.24 | 77.75 | 0.6457 | -635.0 | -530.0 | |
| 0.00 | 1.35 | 0.00 | 0.89 | 14.34 | 333.52 | -41.25 | 76.23 | 0.6601 | -615.0 | -504.9 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 17.69 | 331.70 | -43.07 | 71.60 | 0.6879 | -687.0 | -521.7 | |
| 0.00 | 1.35 | 0.00 | 0.92 | 17.47 | 331.64 | -43.13 | 71.93 | 0.6883 | -779.0 | -653.2 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 18.52 | 330.38 | -44.39 | 70.70 | 0.7052 | -599.0 | -473.4 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 18.67 | 330.20 | -44.57 | 70.53 | 0.7075 | -404.0 | -358.6 | |
| 0.54 | 3.23 | 0.39 | 2.33 | 18.44 | 328.26 | -46.51 | 71.23 | 0.7293 | -565.2 | -460.0 | |
| 0.00 | 1.08 | 0.00 | 0.79 | 18.00 | 327.57 | -47.20 | 71.93 | 0.7363 | -501.0 | -375.7 | |
| 0.00 | 1.44 | 0.00 | 1.06 | 16.17 | 326.91 | -47.86 | 74.50 | 0.7413 | 685.0 | 605.2 | |
| 2.34 | 4.13 | 1.74 | 3.08 | 15.95 | 326.27 | -48.50 | 74.86 | 0.7483 | 591.5 | 487.3 | |
| 0.00 | 2.07 | 0.00 | 1.54 | 16.22 | 326.13 | -48.64 | 74.52 | 0.7501 | 560.0 | 464.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
