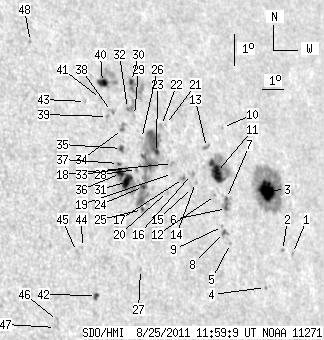

SDO HMI 2011-08-25 11:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.92 | 393.45 | 57.01 | 295.12 | 17.53 | 61.17 | 48.59 | 287.30 | 0.7507 | -148.6 | 24.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-25 11:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 1.16 | 14.62 | 65.33 | 52.75 | 283.08 | 0.7930 | 265.0 | 244.0 | |
| 0.00 | 1.17 | 0.00 | 0.94 | 14.76 | 64.86 | 52.28 | 283.28 | 0.7882 | 658.0 | 635.1 | |
| 20.29 | 106.68 | 16.26 | 85.61 | 16.64 | 64.71 | 52.14 | 285.67 | 0.7879 | -924.7 | -176.5 | |
| 0.00 | 1.26 | 0.00 | 0.98 | 13.73 | 63.66 | 51.09 | 282.02 | 0.7751 | -583.0 | -549.6 | |
| 0.00 | 1.26 | 0.00 | 0.96 | 15.21 | 62.40 | 49.82 | 284.02 | 0.7622 | -556.0 | -457.9 | |
| 1.71 | 9.61 | 1.31 | 7.37 | 16.28 | 62.56 | 49.98 | 285.41 | 0.7649 | -633.3 | -455.2 | |
| 1.44 | -6.00 | 1.10 | -6.00 | 16.58 | 62.67 | 50.09 | 285.80 | 0.7663 | -558.2 | 999999 | |
| 1.53 | 3.95 | 1.16 | 3.00 | 15.56 | 62.22 | 49.64 | 284.51 | 0.7606 | -736.7 | -546.5 | |
| 0.00 | 0.99 | 0.00 | 0.75 | 15.75 | 62.18 | 49.61 | 284.76 | 0.7603 | -590.0 | -515.0 | |
| 0.00 | 1.17 | 0.00 | 0.91 | 18.74 | 63.30 | 50.73 | 288.52 | 0.7754 | 486.0 | 376.4 | |
| 17.06 | 39.15 | 13.07 | 30.11 | 17.41 | 62.47 | 49.90 | 286.90 | 0.7651 | -761.0 | -30.8 | |
| 0.00 | 0.90 | 0.00 | 0.68 | 16.72 | 62.17 | 49.60 | 286.03 | 0.7611 | -773.0 | -676.5 | |
| 0.00 | 2.24 | 0.00 | 1.72 | 18.21 | 62.28 | 49.71 | 287.97 | 0.7640 | -749.0 | -667.9 | |
| 0.00 | 0.99 | 0.00 | 0.74 | 17.20 | 61.37 | 48.79 | 286.76 | 0.7529 | -425.0 | -447.2 | |
| 0.00 | 1.26 | 0.00 | 0.94 | 17.06 | 61.17 | 48.60 | 286.60 | 0.7506 | -678.0 | -560.3 | |
| 0.00 | 3.23 | 0.00 | 2.42 | 17.46 | 61.27 | 48.69 | 287.12 | 0.7521 | -626.0 | -508.7 | |
| 0.45 | 1.89 | 0.33 | 1.40 | 17.37 | 60.85 | 48.28 | 287.06 | 0.7474 | -800.8 | -744.0 | |
| 0.00 | 1.98 | 0.00 | 1.46 | 17.87 | 60.50 | 47.93 | 287.78 | 0.7442 | -675.0 | -606.0 | |
| 0.00 | 1.17 | 0.00 | 0.86 | 17.56 | 60.40 | 47.82 | 287.39 | 0.7426 | -548.0 | -464.1 | |
| 0.00 | 2.42 | 0.00 | 1.77 | 17.04 | 59.98 | 47.40 | 286.74 | 0.7373 | -461.0 | -302.6 | |
| 0.00 | 0.99 | 0.00 | 0.73 | 19.08 | 60.62 | 48.04 | 289.38 | 0.7473 | -535.0 | -444.5 | |
| 0.00 | 1.62 | 0.00 | 1.20 | 19.07 | 60.42 | 47.85 | 289.39 | 0.7451 | -679.0 | -557.4 | |
| 1.62 | 92.22 | 1.18 | 66.79 | 18.27 | 59.89 | 47.31 | 288.41 | 0.7379 | -494.2 | 194.1 | |
| 1.89 | -23.00 | 1.35 | -23.00 | 17.29 | 58.94 | 46.37 | 287.23 | 0.7258 | 569.0 | 999999 | |
| 0.81 | -23.00 | 0.58 | -23.00 | 16.59 | 58.67 | 46.10 | 286.32 | 0.7218 | -420.4 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 18.75 | 59.35 | 46.78 | 289.16 | 0.7328 | 534.0 | 448.2 | |
| 0.00 | 1.26 | 0.00 | 0.88 | 14.78 | 58.06 | 45.48 | 283.88 | 0.7125 | 501.0 | 415.3 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 17.83 | 58.80 | 46.22 | 288.00 | 0.7250 | 539.0 | 398.2 | |
| 0.00 | 1.35 | 0.00 | 0.98 | 19.48 | 59.29 | 46.72 | 290.15 | 0.7334 | 171.0 | 179.7 | |
| 2.07 | 16.34 | 1.51 | 11.98 | 20.53 | 59.56 | 46.99 | 291.51 | 0.7383 | -751.9 | -37.3 | |
| 9.70 | 40.50 | 6.88 | 28.72 | 17.50 | 58.28 | 45.70 | 287.63 | 0.7185 | 782.4 | 471.7 | |
| 0.36 | 7.36 | 0.26 | 5.35 | 19.72 | 59.06 | 46.48 | 290.53 | 0.7312 | 407.0 | 185.0 | |
| 1.17 | -31.00 | 0.83 | -31.00 | 17.90 | 58.36 | 45.79 | 288.17 | 0.7201 | 401.2 | 999999 | |
| 0.45 | 4.04 | 0.32 | 2.90 | 19.10 | 58.59 | 46.02 | 289.78 | 0.7249 | 753.2 | 501.1 | |
| 2.16 | 3.50 | 1.54 | 2.50 | 18.52 | 58.34 | 45.77 | 289.04 | 0.7210 | 724.5 | 597.5 | |
| 4.31 | -31.00 | 3.05 | -31.00 | 17.77 | 58.04 | 45.47 | 288.05 | 0.7163 | 895.3 | 999999 | |
| 1.26 | -31.00 | 0.89 | -31.00 | 18.08 | 58.06 | 45.48 | 288.48 | 0.7169 | 633.7 | 999999 | |
| 0.00 | 3.14 | 0.00 | 2.24 | 19.69 | 58.30 | 45.72 | 290.65 | 0.7227 | 449.0 | 465.8 | |
| 0.00 | 1.62 | 0.00 | 1.15 | 19.55 | 58.06 | 45.49 | 290.51 | 0.7198 | 754.0 | 602.7 | |
| 5.66 | 22.54 | 4.05 | 16.20 | 20.61 | 58.23 | 45.65 | 291.92 | 0.7238 | 691.4 | -14.8 | |
| 0.00 | 1.62 | 0.00 | 1.15 | 20.13 | 57.95 | 45.38 | 291.32 | 0.7197 | 669.0 | 532.9 | |
| 1.98 | 3.05 | 1.34 | 2.07 | 14.16 | 55.96 | 43.39 | 283.23 | 0.6865 | 760.4 | 596.5 | |
| 0.00 | 1.26 | 0.00 | 0.88 | 20.09 | 57.25 | 44.68 | 291.44 | 0.7117 | 582.0 | 448.5 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 15.66 | 55.74 | 43.16 | 285.44 | 0.6856 | 611.0 | 496.5 | |
| 0.00 | 1.44 | 0.00 | 0.97 | 15.56 | 55.45 | 42.87 | 285.34 | 0.6820 | 542.0 | 459.8 | |
| 0.00 | 2.07 | 0.00 | 1.36 | 13.53 | 54.17 | 41.59 | 282.52 | 0.6634 | 614.0 | 566.8 | |
| 0.00 | 1.08 | 0.00 | 0.71 | 13.33 | 54.04 | 41.46 | 282.23 | 0.6615 | 613.0 | 483.2 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 22.14 | 55.53 | 42.95 | 294.76 | 0.6973 | 745.0 | 647.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
