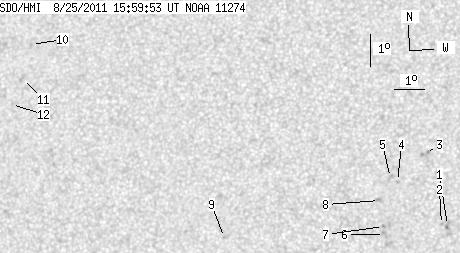

SDO HMI 2011-08-25 15:59:53 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.59 | 0.00 | 13.36 | 19.32 | 357.49 | -12.87 | 42.44 | 0.3043 | -289.2 | -363.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-25 15:59:53 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.23 | 0.00 | 1.65 | 17.95 | 1.87 | -8.49 | 36.36 | 0.2379 | -957.0 | -771.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 17.97 | 1.68 | -8.68 | 36.90 | 0.2402 | -766.0 | -656.1 | |
| 0.00 | 3.32 | 0.00 | 1.71 | 20.16 | 1.04 | -9.32 | 33.61 | 0.2759 | -515.0 | -740.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 19.28 | 0.18 | -10.18 | 37.94 | 0.2725 | -826.0 | -689.3 | |
| 0.00 | 3.14 | 0.00 | 1.62 | 19.40 | 359.94 | -10.42 | 38.28 | 0.2765 | -568.0 | -549.3 | |
| 0.00 | 3.14 | 0.00 | 1.61 | 17.63 | 359.86 | -10.50 | 43.05 | 0.2556 | -589.0 | -611.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 17.88 | 359.81 | -10.55 | 42.50 | 0.2591 | -903.0 | -707.8 | |
| 0.00 | 2.69 | 0.00 | 1.39 | 18.68 | 359.63 | -10.73 | 40.85 | 0.2708 | -923.0 | -629.4 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 17.40 | 354.66 | -15.70 | 54.48 | 0.3187 | 654.0 | 395.3 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 23.14 | 347.28 | -23.08 | 51.52 | 0.4623 | 537.0 | 449.9 | |
| 0.00 | 3.23 | 0.00 | 1.80 | 22.06 | 347.16 | -23.21 | 53.68 | 0.4551 | 753.0 | 550.1 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 21.23 | 346.91 | -23.45 | 55.52 | 0.4519 | 632.0 | 539.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
