SDO HMI 2011-08-25 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.98 | 319.74 | 51.71 | 254.57 | 17.47 | 61.41 | 51.60 | 286.83 | 0.7825 | -205.9 | -4.0 | |
|
previous
or next observation for the same group /

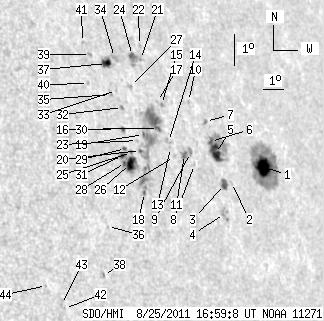

back to the solar disc SDO HMI 2011-08-25 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.69 | 92.70 | 14.24 | 79.24 | 16.67 | 64.79 | 54.98 | 285.49 | 0.8163 | -925.2 | -197.5 | |
| 0.00 | 1.79 | 0.00 | 1.47 | 16.39 | 62.94 | 53.13 | 285.27 | 0.7978 | -262.0 | -192.9 | |
| 5.65 | 6.19 | 4.58 | 5.02 | 16.36 | 62.56 | 52.75 | 285.27 | 0.7939 | -587.7 | -516.7 | |
| 0.00 | 6.55 | 0.00 | 5.27 | 15.49 | 62.24 | 52.42 | 284.19 | 0.7900 | -715.0 | -558.8 | |
| 11.67 | 39.48 | 9.46 | 32.17 | 17.34 | 62.48 | 52.67 | 286.50 | 0.7938 | -715.4 | -55.2 | |
| 1.97 | -5.00 | 1.60 | -5.00 | 17.72 | 62.38 | 52.56 | 287.00 | 0.7931 | -618.5 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.82 | 18.35 | 62.38 | 52.57 | 287.79 | 0.7938 | -604.0 | -513.5 | |
| 0.00 | 1.53 | 0.00 | 1.21 | 17.10 | 61.30 | 51.48 | 286.32 | 0.7815 | -506.0 | -467.7 | |
| 0.00 | 3.23 | 0.00 | 2.55 | 17.48 | 61.24 | 51.43 | 286.82 | 0.7813 | -581.0 | -509.6 | |
| 0.00 | 1.08 | 0.00 | 0.86 | 19.03 | 61.79 | 51.98 | 288.72 | 0.7885 | -618.0 | -545.7 | |
| 2.51 | 5.56 | 1.97 | 4.37 | 17.45 | 60.92 | 51.11 | 286.81 | 0.7779 | -708.4 | -564.5 | |
| 0.00 | 1.44 | 0.00 | 1.12 | 17.44 | 60.41 | 50.60 | 286.85 | 0.7725 | -678.0 | -559.0 | |
| 0.00 | 0.81 | 0.00 | 0.63 | 17.73 | 60.32 | 50.51 | 287.23 | 0.7719 | -651.0 | -591.3 | |
| 0.00 | 2.78 | 0.00 | 2.16 | 17.92 | 60.30 | 50.48 | 287.48 | 0.7718 | -648.0 | -572.3 | |
| 0.00 | 1.70 | 0.00 | 1.33 | 19.07 | 60.41 | 50.60 | 288.95 | 0.7744 | -702.0 | -573.5 | |
| 0.90 | 84.62 | 0.69 | 64.45 | 18.35 | 59.97 | 50.15 | 288.09 | 0.7689 | -312.2 | 249.0 | |
| 0.00 | 0.81 | 0.00 | 0.63 | 19.18 | 60.26 | 50.44 | 289.11 | 0.7730 | -540.0 | -415.6 | |
| 1.35 | -16.00 | 1.01 | -16.00 | 16.48 | 58.59 | 48.78 | 285.81 | 0.7519 | -499.4 | 999999 | |
| 1.35 | -16.00 | 1.02 | -16.00 | 18.24 | 59.18 | 49.36 | 288.05 | 0.7603 | 481.9 | 999999 | |
| 0.99 | -16.00 | 0.74 | -16.00 | 17.77 | 58.85 | 49.04 | 287.47 | 0.7562 | 379.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.84 | 20.53 | 59.99 | 50.17 | 290.90 | 0.7721 | 82.0 | 39.0 | |
| 0.00 | 1.26 | 0.00 | 0.98 | 20.96 | 60.13 | 50.32 | 291.42 | 0.7743 | -574.0 | -463.9 | |
| 0.00 | 0.99 | 0.00 | 0.74 | 18.08 | 58.82 | 49.01 | 287.89 | 0.7563 | 419.0 | 362.5 | |
| 3.14 | 8.79 | 2.42 | 6.78 | 20.68 | 59.65 | 49.84 | 291.16 | 0.7689 | -695.6 | -221.1 | |
| 0.00 | 1.17 | 0.00 | 0.87 | 17.74 | 58.41 | 48.59 | 287.51 | 0.7513 | 348.0 | 272.5 | |
| 8.26 | 22.61 | 6.15 | 16.83 | 17.41 | 58.24 | 48.43 | 287.09 | 0.7491 | 774.0 | 486.2 | |
| 0.00 | 2.60 | 0.00 | 1.98 | 19.75 | 59.14 | 49.33 | 290.03 | 0.7621 | 436.0 | 323.1 | |
| 0.99 | -26.00 | 0.73 | -26.00 | 17.46 | 58.02 | 48.20 | 287.19 | 0.7467 | 929.5 | 999999 | |
| 0.72 | 2.15 | 0.53 | 1.60 | 17.89 | 58.17 | 48.36 | 287.74 | 0.7489 | 595.2 | 467.3 | |
| 1.44 | 2.15 | 1.07 | 1.61 | 18.50 | 58.30 | 48.49 | 288.53 | 0.7512 | 532.0 | 551.6 | |
| 2.24 | -26.00 | 1.66 | -26.00 | 17.69 | 57.95 | 48.14 | 287.50 | 0.7463 | 783.0 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.28 | 19.15 | 58.50 | 48.69 | 289.35 | 0.7544 | 732.0 | 503.1 | |
| 0.00 | 0.99 | 0.00 | 0.74 | 19.69 | 58.43 | 48.61 | 290.07 | 0.7544 | 511.0 | 390.5 | |
| 0.00 | 4.04 | 0.00 | 3.06 | 20.70 | 58.76 | 48.94 | 291.34 | 0.7596 | -294.0 | -215.6 | |
| 0.00 | 0.90 | 0.00 | 0.67 | 19.59 | 58.14 | 48.33 | 289.99 | 0.7512 | 653.0 | 589.7 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 15.60 | 56.57 | 46.75 | 284.86 | 0.7281 | 391.0 | 494.8 | |
| 5.11 | 7.90 | 3.84 | 5.94 | 20.55 | 58.30 | 48.49 | 291.24 | 0.7545 | 641.9 | 516.3 | |
| 0.00 | 1.97 | 0.00 | 1.40 | 14.14 | 55.97 | 46.16 | 282.90 | 0.7198 | 613.0 | 561.5 | |
| 0.00 | 1.53 | 0.00 | 1.13 | 20.89 | 57.66 | 47.85 | 291.81 | 0.7483 | 576.0 | 462.5 | |
| 0.00 | 1.26 | 0.00 | 0.92 | 20.02 | 57.21 | 47.39 | 290.74 | 0.7418 | 570.0 | 425.0 | |
| 0.00 | 0.90 | 0.00 | 0.67 | 21.29 | 57.45 | 47.63 | 292.39 | 0.7468 | 376.0 | 306.6 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 13.29 | 54.03 | 44.22 | 281.88 | 0.6959 | 471.0 | 417.5 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 13.42 | 53.93 | 44.12 | 282.07 | 0.6947 | 765.0 | 562.8 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 14.05 | 53.43 | 43.61 | 283.03 | 0.6892 | 577.0 | 485.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
