SDO HMI 2011-08-25 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.03 | 0.00 | 9.75 | 18.47 | 359.99 | -9.27 | 36.60 | 0.2544 | -673.7 | -601.8 | |
|
previous
or next observation for the same group /

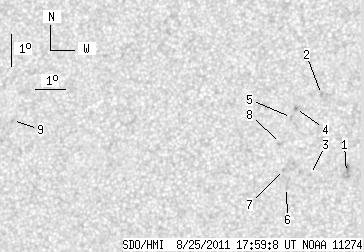

back to the solar disc SDO HMI 2011-08-25 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.91 | 0.00 | 3.51 | 17.78 | 1.85 | -7.41 | 33.24 | 0.2252 | -961.0 | -757.3 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 20.19 | 0.92 | -8.34 | 30.75 | 0.2673 | -947.0 | -706.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 17.70 | 0.69 | -8.57 | 37.27 | 0.2353 | -916.0 | -669.0 | |
| 0.00 | 1.88 | 0.00 | 0.97 | 19.74 | 0.10 | -9.16 | 34.10 | 0.2685 | -899.0 | -808.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 19.45 | 359.99 | -9.27 | 35.05 | 0.2657 | -697.0 | -597.7 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 17.29 | 359.94 | -9.32 | 40.72 | 0.2380 | -838.0 | -623.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 17.84 | 359.82 | -9.44 | 39.55 | 0.2463 | -794.0 | -655.5 | |
| 0.00 | 2.24 | 0.00 | 1.15 | 18.64 | 359.68 | -9.58 | 37.88 | 0.2581 | -861.0 | -599.2 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 19.10 | 350.78 | -18.48 | 54.32 | 0.3702 | 850.0 | 531.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
