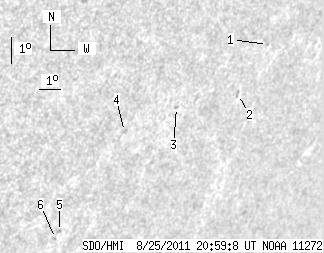

SDO HMI 2011-08-25 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.55 | 0.00 | 6.10 | -21.94 | 51.78 | 44.18 | 234.95 | 0.7918 | -220.2 | -194.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-25 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.61 | -19.31 | 55.94 | 48.34 | 240.11 | 0.8154 | 382.0 | 369.0 | |
| 0.00 | 1.35 | 0.00 | 1.15 | -20.92 | 55.20 | 47.60 | 237.96 | 0.8159 | 492.0 | 461.0 | |
| 0.00 | 1.35 | 0.00 | 1.09 | -21.09 | 52.35 | 44.75 | 236.27 | 0.7920 | -561.0 | -486.8 | |
| 0.00 | 2.51 | 0.00 | 1.97 | -21.72 | 50.23 | 42.63 | 234.36 | 0.7765 | -480.0 | -419.2 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -25.05 | 48.64 | 41.04 | 229.72 | 0.7820 | -595.0 | -490.7 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -25.30 | 48.56 | 40.96 | 229.41 | 0.7828 | -559.0 | -420.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
