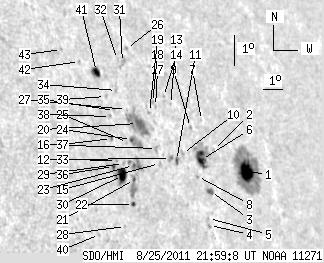

SDO HMI 2011-08-25 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.15 | 261.72 | 45.05 | 223.04 | 17.57 | 61.84 | 54.79 | 286.64 | 0.8144 | -154.3 | -46.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-25 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.61 | 90.08 | 14.28 | 82.56 | 16.74 | 64.88 | 57.83 | 285.40 | 0.8429 | -783.6 | -198.7 | |
| 0.00 | 1.17 | 0.00 | 1.03 | 17.56 | 63.33 | 56.29 | 286.47 | 0.8291 | -163.0 | -197.3 | |
| 3.41 | 3.77 | 2.95 | 3.26 | 16.35 | 62.61 | 55.56 | 285.04 | 0.8217 | -546.0 | -624.8 | |
| 0.00 | 1.88 | 0.00 | 1.61 | 15.33 | 62.14 | 55.09 | 283.83 | 0.8167 | -607.0 | -453.6 | |
| 0.00 | 1.08 | 0.00 | 0.92 | 15.55 | 62.17 | 55.12 | 284.09 | 0.8170 | -501.0 | -432.7 | |
| 10.95 | 27.64 | 9.46 | 23.96 | 17.35 | 62.55 | 55.51 | 286.27 | 0.8217 | -631.5 | -158.4 | |
| 0.00 | 0.63 | 0.00 | 0.55 | 18.52 | 63.11 | 56.07 | 287.65 | 0.8277 | 228.0 | 206.1 | |
| 0.00 | 1.35 | 0.00 | 1.15 | 16.87 | 62.11 | 55.06 | 285.71 | 0.8171 | -517.0 | -455.7 | |
| 0.00 | 1.44 | 0.00 | 1.24 | 18.37 | 62.41 | 55.36 | 287.53 | 0.8210 | -552.0 | -450.9 | |
| 0.00 | 2.06 | 0.00 | 1.75 | 17.63 | 61.62 | 54.57 | 286.69 | 0.8129 | -639.0 | -512.1 | |
| 1.35 | 2.87 | 1.13 | 2.41 | 17.45 | 61.21 | 54.16 | 286.50 | 0.8088 | -423.1 | -481.7 | |
| 0.00 | 3.32 | 0.00 | 2.76 | 17.54 | 60.92 | 53.88 | 286.64 | 0.8060 | -705.0 | -581.1 | |
| 0.00 | 0.99 | 0.00 | 0.84 | 19.17 | 61.68 | 54.63 | 288.57 | 0.8147 | -337.0 | -335.5 | |
| 0.00 | 1.35 | 0.00 | 1.14 | 19.45 | 61.43 | 54.38 | 288.94 | 0.8125 | 518.0 | 397.8 | |
| 0.00 | 1.35 | 0.00 | 1.11 | 17.45 | 60.29 | 53.24 | 286.58 | 0.7997 | -562.0 | -531.3 | |
| 0.00 | 3.68 | 0.00 | 3.03 | 17.92 | 60.33 | 53.28 | 287.16 | 0.8005 | -682.0 | -543.9 | |
| 0.00 | 0.90 | 0.00 | 0.75 | 19.19 | 60.86 | 53.81 | 288.68 | 0.8068 | -278.0 | -254.9 | |
| 0.00 | 1.62 | 0.00 | 1.35 | 19.32 | 60.76 | 53.71 | 288.86 | 0.8060 | -486.0 | -387.3 | |
| 0.00 | 1.35 | 0.00 | 1.11 | 19.04 | 60.46 | 53.41 | 288.54 | 0.8028 | -610.0 | -516.7 | |
| 0.00 | 30.33 | 0.00 | 24.63 | 18.76 | 59.69 | 52.64 | 288.28 | 0.7949 | 259.0 | 212.3 | |
| 1.44 | 11.75 | 1.14 | 9.32 | 17.09 | 58.83 | 51.78 | 286.26 | 0.7845 | 327.2 | 360.8 | |
| 1.44 | 2.15 | 1.13 | 1.70 | 16.34 | 58.50 | 51.45 | 285.33 | 0.7804 | -433.6 | -375.9 | |
| 1.08 | 11.57 | 0.86 | 9.26 | 17.51 | 58.95 | 51.90 | 286.79 | 0.7861 | 418.3 | 110.8 | |
| 1.62 | 11.04 | 1.30 | 8.90 | 18.31 | 59.18 | 52.13 | 287.77 | 0.7892 | 499.6 | 146.1 | |
| 0.00 | 1.08 | 0.00 | 0.86 | 18.24 | 58.94 | 51.89 | 287.71 | 0.7867 | 448.0 | 309.8 | |
| 0.00 | 1.53 | 0.00 | 1.26 | 21.09 | 60.22 | 53.17 | 291.11 | 0.8028 | -487.0 | -406.3 | |
| 0.00 | 0.72 | 0.00 | 0.58 | 19.24 | 59.32 | 52.28 | 288.93 | 0.7917 | 321.0 | 360.6 | |
| 0.00 | 1.17 | 0.00 | 0.91 | 15.71 | 57.87 | 50.82 | 284.58 | 0.7733 | 182.0 | 135.7 | |
| 0.00 | 1.62 | 0.00 | 1.28 | 17.62 | 58.48 | 51.43 | 286.98 | 0.7814 | 386.0 | 285.6 | |
| 10.05 | 14.71 | 7.90 | 11.56 | 17.26 | 58.29 | 51.24 | 286.54 | 0.7790 | 632.3 | 636.9 | |
| 0.00 | 4.67 | 0.00 | 3.82 | 20.68 | 59.80 | 52.75 | 290.67 | 0.7982 | -245.0 | -135.8 | |
| 0.00 | 1.08 | 0.00 | 0.88 | 20.80 | 59.59 | 52.54 | 290.85 | 0.7963 | -474.0 | -381.6 | |
| 0.00 | 0.90 | 0.00 | 0.70 | 17.74 | 58.17 | 51.12 | 287.17 | 0.7783 | 625.0 | 547.8 | |
| 0.00 | 0.99 | 0.00 | 0.79 | 19.86 | 59.08 | 52.04 | 289.74 | 0.7901 | 360.0 | 245.7 | |
| 0.00 | 1.26 | 0.00 | 1.00 | 19.26 | 58.71 | 51.66 | 289.04 | 0.7855 | 265.0 | 203.7 | |
| 1.35 | 2.69 | 1.05 | 2.10 | 17.58 | 57.95 | 50.90 | 286.98 | 0.7758 | 736.6 | 646.5 | |
| 0.00 | 1.62 | 0.00 | 1.27 | 18.43 | 58.19 | 51.15 | 288.05 | 0.7793 | 524.0 | 459.7 | |
| 0.00 | 0.90 | 0.00 | 0.71 | 19.10 | 58.43 | 51.38 | 288.87 | 0.7825 | 507.0 | 452.7 | |
| 0.00 | 1.44 | 0.00 | 1.14 | 19.73 | 58.45 | 51.40 | 289.67 | 0.7835 | 416.0 | 344.5 | |
| 0.00 | 1.08 | 0.00 | 0.82 | 15.59 | 56.54 | 49.49 | 284.53 | 0.7589 | 492.0 | 420.2 | |
| 4.85 | 7.00 | 3.85 | 5.55 | 20.53 | 58.35 | 51.30 | 290.70 | 0.7836 | 515.6 | 498.7 | |
| 0.00 | 1.17 | 0.00 | 0.91 | 20.91 | 57.65 | 50.60 | 291.30 | 0.7771 | 473.0 | 383.8 | |
| 0.00 | 0.72 | 0.00 | 0.56 | 21.36 | 56.94 | 49.89 | 292.00 | 0.7705 | 562.0 | 495.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
