SDO HMI 2011-08-25 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.75 | 0.00 | 5.59 | -22.73 | 52.19 | 45.14 | 234.62 | 0.8036 | -214.3 | -91.5 | |
|
previous
or next observation for the same group /

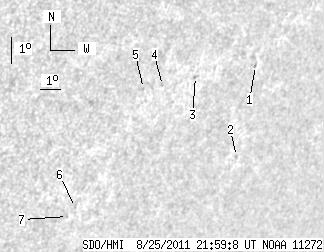

back to the solar disc SDO HMI 2011-08-25 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 1.01 | -20.97 | 55.15 | 48.10 | 238.15 | 0.8204 | 515.0 | 469.9 | |
| 0.00 | 1.26 | 0.00 | 1.14 | -24.15 | 55.70 | 48.66 | 234.98 | 0.8386 | 518.0 | 441.6 | |
| 0.00 | 0.90 | 0.00 | 0.73 | -21.08 | 52.34 | 45.29 | 236.59 | 0.7967 | -545.0 | -473.7 | |
| 0.00 | 1.08 | 0.00 | 0.86 | -21.25 | 50.90 | 43.85 | 235.59 | 0.7848 | -526.0 | -384.9 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -21.28 | 50.05 | 43.00 | 235.08 | 0.7774 | -528.0 | -454.9 | |
| 0.00 | 0.90 | 0.00 | 0.72 | -25.27 | 48.58 | 41.53 | 229.79 | 0.7873 | -416.0 | -391.4 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -25.57 | 48.35 | 41.30 | 229.33 | 0.7872 | -518.0 | -472.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
