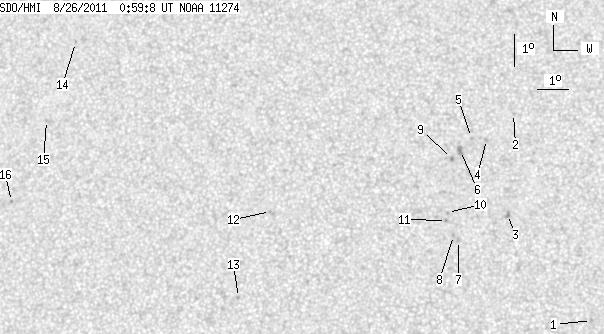

SDO HMI 2011-08-26 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.69 | 0.00 | 13.63 | 18.56 | 358.42 | -6.97 | 26.94 | 0.2398 | -364.4 | -483.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.76 | 14.56 | 4.47 | -0.93 | 6.85 | 0.1320 | -908.0 | -699.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 20.93 | 1.90 | -3.49 | 13.35 | 0.2476 | -869.0 | -651.7 | |
| 0.00 | 3.05 | 0.00 | 1.54 | 17.80 | 1.78 | -3.62 | 17.86 | 0.1968 | -1043.0 | -821.5 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 20.11 | 1.05 | -4.35 | 17.47 | 0.2381 | -866.0 | -683.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 20.17 | 0.56 | -4.83 | 19.20 | 0.2417 | -675.0 | -668.7 | |
| 0.00 | 4.76 | 0.00 | 2.43 | 19.76 | 0.22 | -5.18 | 21.08 | 0.2372 | -1206.0 | -887.4 | |
| 0.00 | 2.33 | 0.00 | 1.18 | 16.98 | 0.24 | -5.16 | 26.46 | 0.1938 | -966.0 | -677.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 17.13 | 0.07 | -5.32 | 26.81 | 0.1974 | -951.0 | -724.1 | |
| 0.00 | 1.88 | 0.00 | 0.96 | 19.51 | 359.94 | -5.46 | 22.54 | 0.2350 | -1004.0 | -866.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 17.84 | 359.86 | -5.53 | 26.08 | 0.2097 | -734.0 | -564.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.59 | 359.84 | -5.56 | 26.73 | 0.2062 | -824.0 | -688.2 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 17.77 | 354.17 | -11.22 | 44.58 | 0.2653 | 926.0 | 790.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 15.11 | 353.30 | -12.09 | 54.82 | 0.2486 | 962.0 | 662.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 22.83 | 347.15 | -18.24 | 46.12 | 0.4020 | 825.0 | 652.8 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 20.36 | 346.48 | -18.91 | 52.14 | 0.3865 | 741.0 | 430.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 17.81 | 345.61 | -19.79 | 59.04 | 0.3775 | 762.0 | 640.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
