SDO HMI 2011-08-26 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.80 | 223.64 | 42.46 | 204.18 | 17.46 | 61.90 | 57.60 | 286.30 | 0.8404 | -134.7 | -73.1 | |
|
previous
or next observation for the same group /

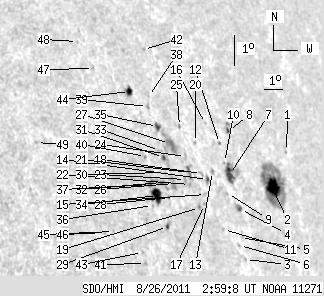

back to the solar disc SDO HMI 2011-08-26 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 1.20 | 17.73 | 66.38 | 62.09 | 286.38 | 0.8792 | 271.0 | 143.3 | |
| 13.74 | 78.01 | 13.57 | 77.27 | 16.75 | 64.89 | 60.59 | 285.30 | 0.8668 | -690.9 | -202.2 | |
| 0.00 | 1.17 | 0.00 | 1.07 | 14.78 | 62.27 | 57.97 | 283.05 | 0.8436 | -346.0 | -311.7 | |
| 1.71 | 3.77 | 1.58 | 3.49 | 16.30 | 62.65 | 58.35 | 284.84 | 0.8474 | -454.4 | -436.7 | |
| 0.00 | 0.54 | 0.00 | 0.49 | 15.46 | 62.27 | 57.97 | 283.87 | 0.8437 | -153.0 | -196.0 | |
| 0.00 | 0.81 | 0.00 | 0.74 | 15.23 | 62.11 | 57.81 | 283.60 | 0.8422 | -568.0 | -423.9 | |
| 9.79 | 18.49 | 9.06 | 17.18 | 17.41 | 62.53 | 58.23 | 286.16 | 0.8467 | -535.2 | -47.1 | |
| 1.26 | 4.85 | 1.18 | 4.57 | 18.73 | 63.18 | 58.88 | 287.68 | 0.8530 | 203.6 | 412.6 | |
| 0.00 | 1.08 | 0.00 | 0.99 | 16.85 | 62.13 | 57.84 | 285.52 | 0.8430 | -580.0 | -447.2 | |
| 0.00 | 0.63 | 0.00 | 0.58 | 17.80 | 62.43 | 58.13 | 286.63 | 0.8460 | -596.0 | -476.6 | |
| 0.00 | 1.08 | 0.00 | 0.97 | 15.80 | 61.41 | 57.11 | 284.30 | 0.8360 | -557.0 | -471.0 | |
| 0.00 | 0.99 | 0.00 | 0.91 | 18.39 | 62.44 | 58.14 | 287.33 | 0.8464 | -391.0 | -421.1 | |
| 0.00 | 1.53 | 0.00 | 1.38 | 17.60 | 61.61 | 57.31 | 286.44 | 0.8385 | -510.0 | -448.9 | |
| 0.54 | 3.41 | 0.48 | 3.05 | 17.39 | 61.21 | 56.91 | 286.21 | 0.8348 | -472.0 | -382.7 | |
| 0.00 | 1.35 | 0.00 | 1.19 | 16.95 | 60.88 | 56.59 | 285.70 | 0.8316 | -691.0 | -587.5 | |
| 0.00 | 0.81 | 0.00 | 0.74 | 19.07 | 61.96 | 57.66 | 288.17 | 0.8425 | -285.0 | -297.6 | |
| 0.00 | 0.99 | 0.00 | 0.87 | 16.65 | 60.69 | 56.39 | 285.36 | 0.8296 | -640.0 | -571.1 | |
| 0.00 | 2.24 | 0.00 | 2.00 | 17.60 | 60.96 | 56.66 | 286.48 | 0.8326 | -559.0 | -485.6 | |
| 0.00 | 1.35 | 0.00 | 1.18 | 16.59 | 60.38 | 56.08 | 285.30 | 0.8266 | -613.0 | -582.9 | |
| 0.00 | 1.08 | 0.00 | 0.96 | 18.56 | 61.09 | 56.79 | 287.63 | 0.8344 | -587.0 | -534.6 | |
| 0.00 | 5.93 | 0.00 | 5.19 | 17.69 | 60.31 | 56.02 | 286.64 | 0.8267 | -644.0 | -591.7 | |
| 0.00 | 1.17 | 0.00 | 1.02 | 17.34 | 60.14 | 55.85 | 286.22 | 0.8248 | -681.0 | -633.9 | |
| 0.00 | 1.80 | 0.00 | 1.56 | 17.51 | 60.00 | 55.70 | 286.44 | 0.8236 | -289.0 | -282.1 | |
| 0.00 | 1.98 | 0.00 | 1.73 | 18.20 | 60.33 | 56.03 | 287.25 | 0.8271 | -494.0 | -405.0 | |
| 0.00 | 1.35 | 0.00 | 1.19 | 19.13 | 60.45 | 56.16 | 288.37 | 0.8289 | -460.0 | -416.1 | |
| 0.00 | 6.73 | 0.00 | 5.75 | 17.45 | 59.30 | 55.00 | 286.42 | 0.8168 | -50.0 | -72.1 | |
| 0.00 | 20.56 | 0.00 | 17.75 | 18.67 | 59.65 | 55.35 | 287.88 | 0.8211 | 280.0 | 233.5 | |
| 0.00 | 1.35 | 0.00 | 1.14 | 17.05 | 58.90 | 54.60 | 285.96 | 0.8127 | 340.0 | 261.3 | |
| 1.08 | 1.71 | 0.90 | 1.43 | 16.19 | 58.43 | 54.13 | 284.93 | 0.8076 | -242.9 | -200.6 | |
| 0.00 | 1.26 | 0.00 | 1.07 | 17.82 | 59.02 | 54.72 | 286.90 | 0.8144 | 349.0 | 259.1 | |
| 1.44 | 5.57 | 1.22 | 4.75 | 18.28 | 59.12 | 54.83 | 287.46 | 0.8158 | 521.7 | 166.0 | |
| 1.08 | 24.69 | 0.91 | 20.62 | 17.54 | 58.67 | 54.38 | 286.58 | 0.8109 | 323.6 | 329.4 | |
| 0.00 | 1.08 | 0.00 | 0.92 | 18.52 | 59.01 | 54.71 | 287.75 | 0.8149 | 605.0 | 474.5 | |
| 8.80 | -32.00 | 7.34 | -32.00 | 17.17 | 58.29 | 54.00 | 286.16 | 0.8069 | 544.9 | 999999 | |
| 2.78 | 4.58 | 2.38 | 3.92 | 19.25 | 59.26 | 54.96 | 288.62 | 0.8179 | 610.2 | 526.0 | |
| 0.00 | 1.08 | 0.00 | 0.89 | 16.90 | 57.91 | 53.61 | 285.85 | 0.8029 | 446.0 | 407.0 | |
| 0.99 | -32.00 | 0.82 | -32.00 | 17.54 | 58.07 | 53.77 | 286.63 | 0.8050 | 566.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.92 | 20.20 | 59.24 | 54.94 | 289.79 | 0.8186 | 181.0 | 185.6 | |
| 0.00 | 1.62 | 0.00 | 1.38 | 19.90 | 59.03 | 54.73 | 289.45 | 0.8163 | 322.0 | 216.1 | |
| 0.00 | 0.90 | 0.00 | 0.75 | 18.41 | 58.19 | 53.89 | 287.70 | 0.8068 | 431.0 | 397.9 | |
| 0.00 | 1.80 | 0.00 | 1.45 | 15.19 | 56.88 | 52.58 | 283.77 | 0.7914 | 584.0 | 469.7 | |
| 0.00 | 1.26 | 0.00 | 1.10 | 21.65 | 59.75 | 55.46 | 291.48 | 0.8249 | -420.0 | -385.2 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 15.53 | 56.85 | 52.55 | 284.21 | 0.7913 | 460.0 | 471.6 | |
| 3.59 | 5.75 | 3.02 | 4.83 | 20.45 | 58.31 | 54.01 | 290.21 | 0.8100 | 476.7 | 366.3 | |
| 0.00 | 0.72 | 0.00 | 0.57 | 16.30 | 55.64 | 51.34 | 285.28 | 0.7792 | 484.0 | 454.1 | |
| 0.00 | 0.36 | 0.00 | 0.28 | 16.31 | 55.19 | 50.89 | 285.34 | 0.7745 | 469.0 | 536.2 | |
| 0.00 | 1.26 | 0.00 | 1.02 | 21.33 | 56.79 | 52.49 | 291.51 | 0.7965 | 442.0 | 340.1 | |
| 0.00 | 0.90 | 0.00 | 0.73 | 22.23 | 56.40 | 52.10 | 292.69 | 0.7940 | 415.0 | 379.9 | |
| 0.00 | 0.99 | 0.00 | 0.74 | 19.33 | 52.97 | 48.67 | 289.57 | 0.7544 | 533.0 | 442.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
