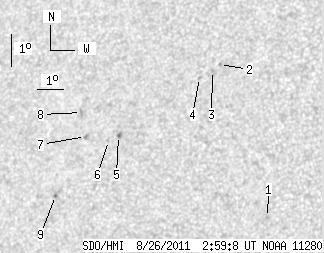

SDO HMI 2011-08-26 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 13.12 | 0.22 | 8.10 | 16.80 | 328.19 | -36.11 | 71.14 | 0.5982 | 161.2 | 292.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.41 | 14.38 | 333.90 | -30.40 | 73.65 | 0.5128 | -740.0 | -643.5 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 18.95 | 331.26 | -33.04 | 66.45 | 0.5646 | -577.0 | -516.2 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 18.75 | 331.04 | -33.26 | 66.89 | 0.5668 | -587.0 | -444.5 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 18.50 | 330.59 | -33.70 | 67.51 | 0.5717 | -625.0 | -494.3 | |
| 0.36 | 2.06 | 0.22 | 1.28 | 16.51 | 327.88 | -36.41 | 71.79 | 0.6013 | 821.2 | 736.4 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 16.33 | 327.53 | -36.77 | 72.19 | 0.6056 | 528.0 | 496.9 | |
| 0.00 | 1.80 | 0.00 | 1.13 | 16.39 | 326.60 | -37.70 | 72.35 | 0.6178 | 938.0 | 706.0 | |
| 0.00 | 2.42 | 0.00 | 1.53 | 17.11 | 326.27 | -38.03 | 71.29 | 0.6238 | 773.0 | 616.5 | |
| 0.00 | 1.44 | 0.00 | 0.91 | 14.51 | 325.81 | -38.49 | 75.53 | 0.6245 | 774.0 | 665.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
