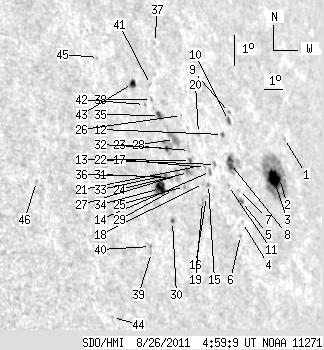

SDO HMI 2011-08-26 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.21 | 206.86 | 47.49 | 195.20 | 17.36 | 62.06 | 58.86 | 286.11 | 0.8515 | -106.3 | -118.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.96 | 17.87 | 66.36 | 63.16 | 286.50 | 0.8876 | 206.0 | 181.6 | |
| 0.72 | 76.14 | 0.74 | 77.97 | 16.72 | 65.32 | 62.12 | 285.23 | 0.8793 | 182.2 | -196.3 | |
| 12.48 | -2.00 | 12.74 | -2.00 | 16.76 | 64.93 | 61.73 | 285.28 | 0.8762 | -741.3 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.43 | 15.65 | 62.36 | 59.16 | 284.06 | 0.8543 | -461.0 | -481.4 | |
| 1.80 | 4.49 | 1.71 | 4.28 | 16.28 | 62.61 | 59.40 | 284.79 | 0.8566 | -458.0 | -311.3 | |
| 0.00 | 1.08 | 0.00 | 1.01 | 15.28 | 62.06 | 58.86 | 283.63 | 0.8517 | -589.0 | -466.3 | |
| 0.00 | 1.44 | 0.00 | 1.37 | 16.63 | 62.59 | 59.39 | 285.20 | 0.8566 | -402.0 | -307.7 | |
| 7.81 | 17.51 | 7.45 | 16.75 | 17.48 | 62.54 | 59.33 | 286.20 | 0.8564 | -576.4 | -82.5 | |
| 0.00 | 1.08 | 0.00 | 1.05 | 19.01 | 63.34 | 60.14 | 287.93 | 0.8638 | 492.0 | 444.7 | |
| 1.98 | 2.60 | 1.92 | 2.53 | 18.78 | 63.14 | 59.93 | 287.68 | 0.8620 | 327.3 | 200.0 | |
| 0.00 | 0.81 | 0.00 | 0.76 | 16.84 | 62.08 | 58.87 | 285.46 | 0.8522 | -273.0 | -311.9 | |
| 1.35 | 2.15 | 1.29 | 2.06 | 18.40 | 62.53 | 59.33 | 287.27 | 0.8567 | -374.1 | -509.6 | |
| 0.00 | 1.71 | 0.00 | 1.59 | 17.54 | 61.64 | 58.44 | 286.31 | 0.8486 | -499.0 | -369.0 | |
| 0.00 | 2.24 | 0.00 | 2.07 | 17.37 | 61.24 | 58.04 | 286.12 | 0.8450 | -502.0 | -403.2 | |
| 0.00 | 1.17 | 0.00 | 1.07 | 16.99 | 60.93 | 57.73 | 285.69 | 0.8421 | -636.0 | -600.8 | |
| 0.00 | 0.45 | 0.00 | 0.41 | 16.64 | 60.65 | 57.45 | 285.29 | 0.8393 | -503.0 | -570.6 | |
| 0.00 | 1.44 | 0.00 | 1.31 | 17.51 | 61.02 | 57.81 | 286.31 | 0.8430 | -523.0 | -438.2 | |
| 0.00 | 1.89 | 0.00 | 1.71 | 17.05 | 60.67 | 57.46 | 285.77 | 0.8397 | -572.0 | -494.8 | |
| 0.00 | 3.95 | 0.00 | 3.55 | 16.52 | 60.35 | 57.15 | 285.15 | 0.8366 | -387.0 | -363.8 | |
| 0.00 | 1.08 | 0.00 | 0.99 | 18.57 | 61.14 | 57.94 | 287.56 | 0.8447 | -596.0 | -526.5 | |
| 0.00 | 1.26 | 0.00 | 1.14 | 17.59 | 60.58 | 57.37 | 286.43 | 0.8391 | -603.0 | -559.9 | |
| 1.80 | 4.58 | 1.61 | 4.12 | 17.81 | 60.27 | 57.07 | 286.71 | 0.8364 | -580.8 | -614.9 | |
| 0.00 | 1.44 | 0.00 | 1.30 | 18.11 | 60.37 | 57.16 | 287.07 | 0.8375 | -549.0 | -448.2 | |
| 0.00 | 4.76 | 0.00 | 4.25 | 17.46 | 59.98 | 56.78 | 286.31 | 0.8336 | -291.0 | -406.4 | |
| 0.00 | 1.35 | 0.00 | 1.19 | 17.06 | 59.56 | 56.36 | 285.86 | 0.8295 | 164.0 | 46.9 | |
| 0.00 | 0.81 | 0.00 | 0.73 | 19.21 | 60.47 | 57.27 | 288.37 | 0.8391 | -490.0 | -422.9 | |
| 0.00 | 6.73 | 0.00 | 5.91 | 17.43 | 59.33 | 56.13 | 286.32 | 0.8276 | -132.0 | -127.8 | |
| 0.00 | 9.88 | 0.00 | 8.76 | 18.53 | 59.70 | 56.49 | 287.61 | 0.8316 | 303.0 | 261.3 | |
| 0.00 | 1.35 | 0.00 | 1.17 | 17.03 | 58.92 | 55.72 | 285.86 | 0.8235 | 355.0 | 272.7 | |
| 1.08 | 1.80 | 0.92 | 1.54 | 16.08 | 58.45 | 55.25 | 284.73 | 0.8185 | -347.9 | -288.1 | |
| 0.00 | 1.62 | 0.00 | 1.40 | 17.41 | 58.92 | 55.72 | 286.32 | 0.8237 | 155.0 | 151.8 | |
| 1.89 | 9.70 | 1.65 | 8.50 | 18.30 | 59.12 | 55.92 | 287.39 | 0.8261 | 429.0 | 153.6 | |
| 1.26 | 1.80 | 1.09 | 1.55 | 17.50 | 58.68 | 55.48 | 286.44 | 0.8214 | 246.4 | 290.8 | |
| 10.60 | 14.10 | 9.05 | 12.05 | 17.13 | 58.23 | 55.03 | 286.03 | 0.8170 | 595.0 | 317.3 | |
| 3.41 | 4.85 | 3.00 | 4.26 | 19.33 | 59.24 | 56.04 | 288.62 | 0.8280 | 572.5 | 443.4 | |
| 1.35 | 2.69 | 1.15 | 2.30 | 17.53 | 58.08 | 54.87 | 286.52 | 0.8157 | 628.1 | 445.5 | |
| 0.00 | 1.26 | 0.00 | 1.14 | 21.56 | 60.21 | 57.01 | 291.19 | 0.8387 | -450.0 | -343.7 | |
| 0.00 | 1.62 | 0.00 | 1.42 | 19.86 | 59.05 | 55.85 | 289.27 | 0.8267 | 207.0 | 136.1 | |
| 0.00 | 1.17 | 0.00 | 0.97 | 15.26 | 56.98 | 53.78 | 283.79 | 0.8036 | 540.0 | 502.2 | |
| 0.00 | 1.35 | 0.00 | 1.12 | 15.45 | 56.99 | 53.79 | 284.02 | 0.8038 | 568.0 | 505.0 | |
| 0.00 | 1.53 | 0.00 | 1.34 | 20.32 | 59.25 | 56.04 | 289.80 | 0.8289 | 289.0 | 179.7 | |
| 0.00 | 1.17 | 0.00 | 1.01 | 19.74 | 58.59 | 55.39 | 289.18 | 0.8224 | 456.0 | 393.5 | |
| 3.68 | 4.58 | 3.17 | 3.94 | 20.44 | 58.28 | 55.08 | 290.07 | 0.8201 | 482.2 | 410.3 | |
| 0.00 | 1.08 | 0.00 | 0.84 | 13.50 | 54.37 | 51.17 | 281.68 | 0.7758 | 461.0 | 415.0 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 21.41 | 56.89 | 53.69 | 291.42 | 0.8081 | 391.0 | 444.7 | |
| 0.00 | 1.53 | 0.00 | 1.15 | 17.93 | 52.12 | 48.92 | 287.68 | 0.7550 | 584.0 | 464.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
