SDO HMI 2011-08-26 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.69 | 0.00 | 14.07 | 18.37 | 358.46 | -4.74 | 319.48 | 0.2228 | -494.8 | -397.0 | |
|
previous
or next observation for the same group /

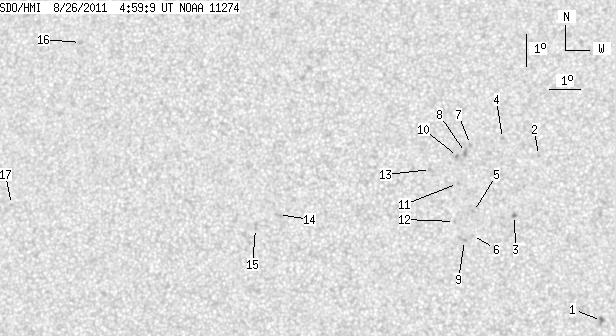

back to the solar disc SDO HMI 2011-08-26 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.50 | 0.00 | 1.75 | 14.53 | 4.56 | 1.36 | 349.99 | 0.1326 | -1054.0 | -846.1 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 19.61 | 2.57 | -0.63 | 2.73 | 0.2184 | -799.0 | -642.3 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 17.75 | 1.81 | -1.39 | 7.09 | 0.1877 | -1129.0 | -876.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 20.13 | 1.41 | -1.79 | 7.41 | 0.2291 | -848.0 | -631.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 17.87 | 0.51 | -2.69 | 13.41 | 0.1937 | -903.0 | -757.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 17.13 | 0.49 | -2.71 | 14.51 | 0.1815 | -834.0 | -629.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 19.94 | 0.38 | -2.82 | 11.73 | 0.2288 | -751.0 | -636.0 | |
| 0.00 | 3.32 | 0.00 | 1.69 | 19.69 | 0.22 | -2.98 | 12.62 | 0.2252 | -1177.0 | -889.4 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 16.97 | 0.24 | -2.97 | 16.03 | 0.1800 | -948.0 | -753.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 19.57 | 359.97 | -3.24 | 13.79 | 0.2241 | -1052.0 | -883.7 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 18.73 | 359.98 | -3.22 | 14.73 | 0.2102 | -715.0 | -567.1 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 17.56 | 359.91 | -3.29 | 16.73 | 0.1912 | -750.0 | -617.9 | |
| 0.00 | 2.07 | 0.00 | 1.05 | 19.16 | 359.11 | -4.10 | 17.83 | 0.2214 | -827.0 | -536.7 | |
| 0.00 | 2.60 | 0.00 | 1.33 | 17.70 | 354.27 | -8.93 | 38.48 | 0.2387 | 855.0 | 724.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.26 | 353.56 | -9.64 | 41.86 | 0.2409 | 941.0 | 667.8 | |
| 0.00 | 2.07 | 0.00 | 1.10 | 22.89 | 347.29 | -15.91 | 42.36 | 0.3765 | 790.0 | 613.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 17.77 | 345.53 | -17.67 | 56.50 | 0.3481 | 789.0 | 500.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
