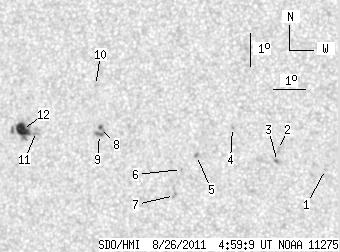

SDO HMI 2011-08-26 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.29 | 58.01 | 6.98 | 30.25 | 7.54 | 345.10 | -18.11 | 87.46 | 0.3095 | -70.3 | 106.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.63 | 6.76 | 352.78 | -10.42 | 91.05 | 0.1804 | -922.0 | -551.1 | |
| 0.00 | 2.60 | 0.00 | 1.32 | 7.33 | 351.31 | -11.89 | 87.96 | 0.2055 | -832.0 | -770.5 | |
| 0.00 | 2.60 | 0.00 | 1.32 | 6.97 | 351.29 | -11.92 | 89.74 | 0.2059 | -1075.0 | -869.3 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 7.96 | 349.85 | -13.35 | 85.27 | 0.2305 | -885.0 | -671.8 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 7.08 | 348.74 | -14.46 | 89.05 | 0.2489 | -990.0 | -815.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 6.64 | 348.28 | -14.92 | 90.74 | 0.2569 | -1099.0 | -807.1 | |
| 0.00 | 2.15 | 0.00 | 1.11 | 5.85 | 348.09 | -15.12 | 93.76 | 0.2611 | -883.0 | -730.0 | |
| 1.53 | 6.73 | 0.79 | 3.50 | 7.82 | 345.66 | -17.54 | 86.37 | 0.3005 | -994.6 | -891.4 | |
| 0.81 | -8.00 | 0.42 | -8.00 | 7.61 | 345.64 | -17.56 | 87.09 | 0.3008 | -1008.2 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 9.09 | 345.44 | -17.76 | 82.23 | 0.3053 | 841.0 | 685.2 | |
| 0.00 | 5.03 | 0.00 | 2.64 | 7.62 | 343.61 | -19.60 | 87.11 | 0.3343 | 508.0 | 759.9 | |
| 10.95 | 31.43 | 5.77 | 16.55 | 7.67 | 343.15 | -20.05 | 86.99 | 0.3418 | 1102.2 | 665.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
