SDO HMI 2011-08-26 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.45 | 77.22 | 22.31 | 113.66 | 13.38 | 291.96 | -71.24 | 78.28 | 0.9422 | -362.9 | -86.8 | |
|
previous
or next observation for the same group /

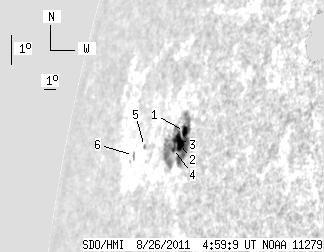

back to the solar disc SDO HMI 2011-08-26 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.04 | 73.36 | 5.76 | 106.82 | 13.73 | 292.45 | -70.76 | 77.93 | 0.9394 | -569.9 | -115.0 | |
| 8.17 | -1.00 | 11.79 | -1.00 | 13.33 | 292.24 | -70.96 | 78.35 | 0.9407 | -513.1 | 999999 | |
| 1.89 | -1.00 | 2.78 | -1.00 | 13.43 | 291.78 | -71.42 | 78.21 | 0.9433 | 120.4 | 999999 | |
| 1.35 | -1.00 | 1.98 | -1.00 | 13.12 | 291.80 | -71.40 | 78.54 | 0.9433 | -202.8 | 999999 | |
| 0.00 | 1.62 | 0.00 | 2.77 | 12.84 | 288.90 | -74.30 | 78.66 | 0.9586 | 253.0 | 258.2 | |
| 0.00 | 2.24 | 0.00 | 4.07 | 12.45 | 287.90 | -75.30 | 79.01 | 0.9634 | 323.0 | 265.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
