SDO HMI 2011-08-26 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.98 | 0.00 | 9.80 | 16.77 | 327.72 | -35.48 | 70.97 | 0.5902 | 559.0 | 315.0 | |
|
previous
or next observation for the same group /

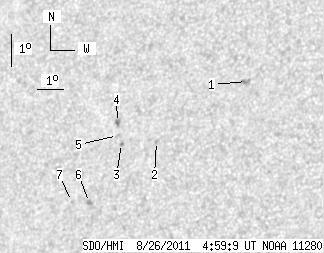

back to the solar disc SDO HMI 2011-08-26 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.40 | 0.00 | 2.61 | 18.60 | 331.00 | -32.20 | 66.67 | 0.5522 | -688.0 | -541.7 | |
| 0.00 | 2.15 | 0.00 | 1.31 | 16.54 | 327.99 | -35.21 | 71.39 | 0.5854 | 791.0 | 578.4 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 16.38 | 326.66 | -36.55 | 72.05 | 0.6027 | 846.0 | 685.0 | |
| 0.00 | 3.23 | 0.00 | 2.01 | 17.01 | 326.36 | -36.84 | 71.11 | 0.6083 | 853.0 | 615.2 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 16.61 | 326.45 | -36.75 | 71.73 | 0.6061 | 710.0 | 613.3 | |
| 0.00 | 2.78 | 0.00 | 1.74 | 14.50 | 325.79 | -37.42 | 75.34 | 0.6103 | 851.0 | 662.2 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 14.48 | 325.08 | -38.13 | 75.52 | 0.6196 | 550.0 | 533.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
