SDO HMI 2011-08-26 05:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.83 | 88.90 | 19.43 | 127.49 | 13.40 | 292.08 | -70.58 | 78.29 | 0.9383 | -423.6 | -90.1 | |
|
previous
or next observation for the same group /

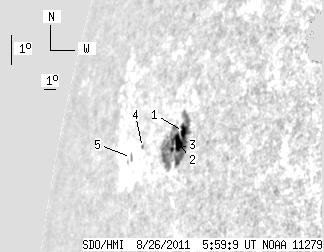

back to the solar disc SDO HMI 2011-08-26 05:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.67 | 85.04 | 6.51 | 120.85 | 13.73 | 292.46 | -70.20 | 77.95 | 0.9361 | -570.7 | -113.9 | |
| 7.90 | -1.00 | 11.12 | -1.00 | 13.33 | 292.26 | -70.40 | 78.37 | 0.9374 | -518.0 | 999999 | |
| 1.26 | -1.00 | 1.80 | -1.00 | 13.10 | 291.85 | -70.81 | 78.60 | 0.9399 | -141.1 | 999999 | |
| 0.00 | 1.35 | 0.00 | 2.24 | 12.82 | 288.93 | -73.72 | 78.72 | 0.9557 | 231.0 | 246.6 | |
| 0.00 | 2.51 | 0.00 | 4.40 | 12.40 | 288.00 | -74.66 | 79.10 | 0.9604 | 420.0 | 285.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
