SDO HMI 2011-08-26 06:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.33 | 10.33 | 1.29 | 5.70 | -18.49 | 355.26 | -6.84 | 165.30 | 0.4471 | -56.3 | -287.2 | |
|
previous
or next observation for the same group /

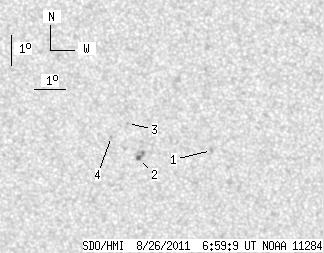

back to the solar disc SDO HMI 2011-08-26 06:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.74 | -18.44 | 357.45 | -4.66 | 169.85 | 0.4388 | 872.0 | 702.7 | |
| 2.33 | 6.64 | 1.29 | 3.68 | -18.74 | 355.09 | -7.01 | 165.09 | 0.4513 | -791.1 | -774.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -17.57 | 354.79 | -7.32 | 163.72 | 0.4350 | -784.0 | -580.2 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -18.01 | 354.26 | -7.85 | 162.92 | 0.4441 | 691.0 | 580.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
