SDO HMI 2011-08-26 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.55 | 59.27 | 11.24 | 30.60 | 7.54 | 345.46 | -16.10 | 87.32 | 0.2760 | 204.1 | -180.8 | |
|
previous
or next observation for the same group /

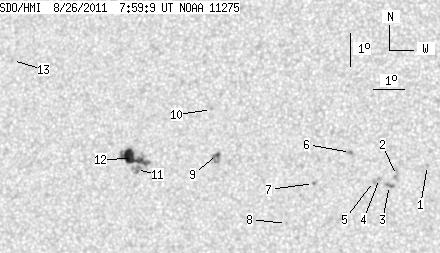

back to the solar disc SDO HMI 2011-08-26 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.63 | 7.63 | 352.33 | -9.23 | 85.86 | 0.1601 | -875.0 | -574.1 | |
| 0.00 | 4.40 | 0.00 | 2.21 | 7.31 | 351.38 | -10.18 | 87.97 | 0.1763 | -1072.0 | -787.2 | |
| 0.00 | 3.68 | 0.00 | 1.85 | 7.00 | 351.17 | -10.39 | 89.70 | 0.1799 | -1159.0 | -839.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 7.20 | 350.85 | -10.71 | 88.56 | 0.1852 | -929.0 | -657.3 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 7.11 | 350.67 | -10.89 | 89.07 | 0.1884 | -841.0 | -698.7 | |
| 0.00 | 2.60 | 0.00 | 1.32 | 7.97 | 349.93 | -11.63 | 84.74 | 0.2014 | -1010.0 | -738.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 7.00 | 348.80 | -12.76 | 89.48 | 0.2202 | -870.0 | -750.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 5.77 | 347.98 | -13.58 | 94.69 | 0.2354 | -821.0 | -647.8 | |
| 1.62 | 7.54 | 0.83 | 3.88 | 7.79 | 345.74 | -15.82 | 86.33 | 0.2718 | -1004.3 | -833.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 9.15 | 345.49 | -16.06 | 81.44 | 0.2775 | 876.0 | 688.0 | |
| 0.00 | 6.91 | 0.00 | 3.61 | 7.24 | 343.17 | -18.38 | 88.28 | 0.3144 | 970.0 | 713.3 | |
| 19.93 | 26.22 | 10.41 | 13.69 | 7.57 | 343.03 | -18.53 | 87.24 | 0.3167 | 1009.3 | 667.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 10.37 | 338.93 | -22.63 | 79.96 | 0.3860 | 596.0 | 499.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
