SDO HMI 2011-08-26 08:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.33 | 90.24 | 23.42 | 120.66 | 13.39 | 292.04 | -68.97 | 78.36 | 0.9285 | -366.9 | -101.4 | |
|
previous
or next observation for the same group /

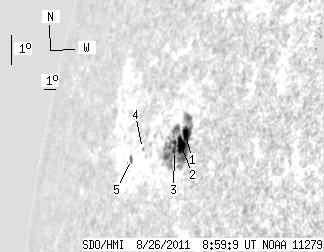

back to the solar disc SDO HMI 2011-08-26 08:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.57 | 86.29 | 7.25 | 114.43 | 13.68 | 292.38 | -68.63 | 78.06 | 0.9264 | -563.0 | -110.4 | |
| 7.81 | -1.00 | 10.25 | -1.00 | 13.33 | 292.25 | -68.76 | 78.44 | 0.9273 | -571.8 | 999999 | |
| 1.53 | -1.00 | 2.04 | -1.00 | 13.12 | 291.77 | -69.24 | 78.65 | 0.9304 | -162.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.78 | 12.85 | 288.89 | -72.12 | 78.79 | 0.9473 | 261.0 | 266.0 | |
| 2.42 | 2.78 | 3.88 | 4.45 | 12.41 | 288.05 | -72.96 | 79.20 | 0.9519 | 271.6 | 254.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
