SDO HMI 2011-08-26 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.47 | 0.00 | 7.32 | -20.14 | 54.48 | 54.02 | 241.62 | 0.8648 | -50.8 | -44.2 | |
|
previous
or next observation for the same group /

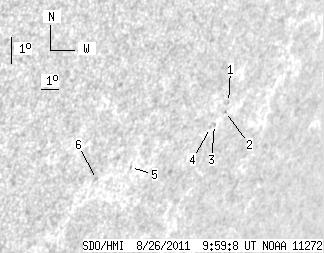

back to the solar disc SDO HMI 2011-08-26 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.83 | -19.18 | 56.62 | 56.16 | 243.53 | 0.8783 | -283.0 | -259.9 | |
| 0.00 | 1.08 | 0.00 | 1.11 | -19.48 | 56.60 | 56.14 | 243.20 | 0.8790 | -52.0 | 28.5 | |
| 0.00 | 1.71 | 0.00 | 1.75 | -19.86 | 56.17 | 55.71 | 242.63 | 0.8770 | 500.0 | 342.9 | |
| 0.00 | 1.08 | 0.00 | 1.10 | -19.94 | 55.99 | 55.52 | 242.47 | 0.8758 | 405.0 | 293.6 | |
| 0.00 | 0.99 | 0.00 | 0.92 | -20.88 | 52.08 | 51.61 | 239.87 | 0.8488 | -342.0 | -368.8 | |
| 0.00 | 1.80 | 0.00 | 1.61 | -21.12 | 50.43 | 49.97 | 238.87 | 0.8365 | -533.0 | -446.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
