SDO HMI 2011-08-26 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.66 | 61.08 | 10.18 | 31.38 | 7.51 | 345.11 | -15.35 | 87.44 | 0.2638 | -46.4 | 13.3 | |
|
previous
or next observation for the same group /

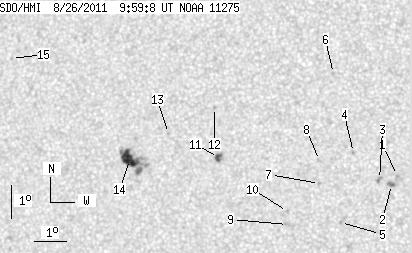

back to the solar disc SDO HMI 2011-08-26 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.59 | 7.30 | 351.33 | -9.13 | 87.92 | 0.1582 | -1031.0 | -855.6 | |
| 0.00 | 3.41 | 0.00 | 1.71 | 7.02 | 351.15 | -9.31 | 89.66 | 0.1613 | -1054.0 | -889.2 | |
| 0.00 | 3.14 | 0.00 | 1.58 | 7.16 | 350.78 | -9.68 | 88.77 | 0.1677 | -1049.0 | -822.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 7.96 | 349.95 | -10.51 | 84.35 | 0.1823 | -976.0 | -760.3 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 5.83 | 349.60 | -10.86 | 95.83 | 0.1893 | -878.0 | -693.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.34 | 349.25 | -11.21 | 72.68 | 0.2012 | -845.0 | -634.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 7.00 | 348.92 | -11.54 | 89.57 | 0.1995 | -877.0 | -674.2 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 7.70 | 348.90 | -11.56 | 86.07 | 0.2000 | -709.0 | -602.5 | |
| 0.00 | 2.42 | 0.00 | 1.23 | 5.73 | 347.95 | -12.51 | 95.35 | 0.2174 | -483.0 | -438.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 6.13 | 347.94 | -12.52 | 93.54 | 0.2169 | -987.0 | -720.2 | |
| 3.77 | 5.03 | 1.93 | 2.57 | 7.70 | 345.73 | -14.73 | 86.54 | 0.2536 | -965.2 | -927.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 9.21 | 345.54 | -14.92 | 80.69 | 0.2587 | 845.0 | 661.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 8.38 | 344.11 | -16.35 | 84.28 | 0.2811 | -547.0 | -412.5 | |
| 15.89 | 35.02 | 8.25 | 18.17 | 7.54 | 342.90 | -17.56 | 87.29 | 0.3007 | 1053.4 | 710.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 10.45 | 338.89 | -21.57 | 79.41 | 0.3694 | 688.0 | 443.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
