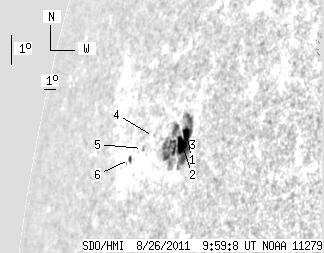

SDO HMI 2011-08-26 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.50 | 93.73 | 24.27 | 122.64 | 13.36 | 292.04 | -68.42 | 78.41 | 0.9251 | -364.6 | -61.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.21 | 89.24 | 6.62 | 115.83 | 13.69 | 292.43 | -68.03 | 78.08 | 0.9226 | -599.1 | -76.7 | |
| 8.62 | -1.00 | 11.04 | -1.00 | 13.33 | 292.31 | -68.16 | 78.46 | 0.9235 | -574.9 | 999999 | |
| 2.69 | -1.00 | 3.53 | -1.00 | 13.11 | 291.75 | -68.71 | 78.68 | 0.9271 | -215.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 1.16 | 13.32 | 289.71 | -70.76 | 78.36 | 0.9395 | 449.0 | 368.9 | |
| 0.00 | 1.08 | 0.00 | 1.60 | 12.86 | 288.95 | -71.51 | 78.81 | 0.9440 | 319.0 | 300.4 | |
| 1.98 | 2.60 | 3.08 | 4.05 | 12.40 | 287.94 | -72.52 | 79.24 | 0.9496 | 236.8 | 337.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
