SDO HMI 2011-08-26 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 10.16 | 0.25 | 5.58 | -18.28 | 355.91 | -4.55 | 170.02 | 0.4363 | 147.5 | -78.4 | |
|
previous
or next observation for the same group /

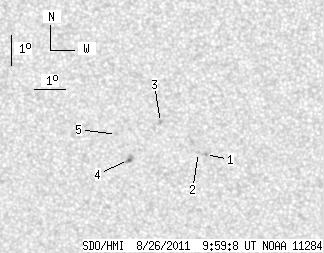

back to the solar disc SDO HMI 2011-08-26 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.89 | -18.46 | 357.57 | -2.90 | 173.65 | 0.4351 | 825.0 | 700.9 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -18.39 | 357.34 | -3.12 | 173.14 | 0.4345 | 850.0 | 569.6 | |
| 0.00 | 1.80 | 0.00 | 0.98 | -17.40 | 356.15 | -4.31 | 170.16 | 0.4216 | 877.0 | 605.0 | |
| 0.45 | 4.40 | 0.25 | 2.43 | -18.65 | 355.09 | -5.37 | 168.43 | 0.4441 | -895.8 | -787.0 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -17.82 | 354.73 | -5.73 | 167.25 | 0.4325 | -658.0 | -523.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
