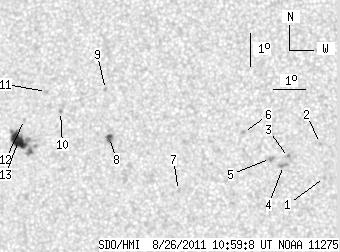

SDO HMI 2011-08-26 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.42 | 56.13 | 8.50 | 28.76 | 7.53 | 345.24 | -14.68 | 87.29 | 0.2522 | 66.7 | 44.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.54 | 6.66 | 352.46 | -7.45 | 92.64 | 0.1295 | -865.0 | -600.8 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 7.68 | 352.32 | -7.59 | 84.75 | 0.1321 | -829.0 | -699.9 | |
| 0.00 | 2.51 | 0.00 | 1.26 | 7.24 | 351.34 | -8.57 | 88.21 | 0.1486 | -907.0 | -749.9 | |
| 0.00 | 3.50 | 0.00 | 1.75 | 7.00 | 351.19 | -8.72 | 89.85 | 0.1512 | -1182.0 | -853.8 | |
| 0.00 | 3.50 | 0.00 | 1.76 | 7.20 | 350.79 | -9.13 | 88.51 | 0.1581 | -1047.0 | -841.0 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 7.97 | 349.93 | -9.98 | 84.06 | 0.1733 | -1042.0 | -816.8 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 6.17 | 347.95 | -11.96 | 93.56 | 0.2073 | -850.0 | -688.3 | |
| 2.24 | 4.58 | 1.15 | 2.34 | 7.71 | 345.75 | -14.16 | 86.41 | 0.2440 | -1052.3 | -862.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 9.16 | 345.57 | -14.35 | 80.58 | 0.2491 | 777.0 | 615.6 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 8.45 | 344.17 | -15.74 | 83.84 | 0.2712 | -791.0 | -637.3 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 9.04 | 343.70 | -16.22 | 81.84 | 0.2799 | 804.0 | 586.4 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 8.17 | 343.03 | -16.88 | 85.08 | 0.2898 | 766.0 | 637.5 | |
| 14.18 | 32.41 | 7.35 | 16.77 | 7.53 | 342.87 | -17.05 | 87.32 | 0.2922 | 1044.4 | 763.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
