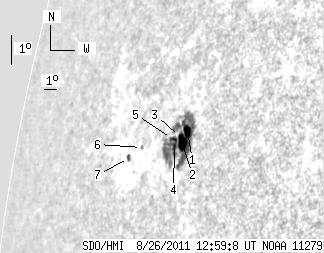

SDO HMI 2011-08-26 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.24 | 102.49 | 28.68 | 125.47 | 13.36 | 291.86 | -66.95 | 78.47 | 0.9153 | -302.2 | -111.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.47 | 98.45 | 6.56 | 119.77 | 13.70 | 292.35 | -66.46 | 78.11 | 0.9119 | -592.0 | -121.5 | |
| 8.97 | -1.00 | 10.82 | -1.00 | 13.31 | 292.18 | -66.63 | 78.54 | 0.9132 | -537.4 | 999999 | |
| 0.90 | -1.00 | 1.10 | -1.00 | 13.49 | 291.84 | -66.98 | 78.33 | 0.9155 | 104.5 | 999999 | |
| 4.13 | -1.00 | 5.08 | -1.00 | 13.18 | 291.60 | -67.21 | 78.66 | 0.9172 | -169.6 | 999999 | |
| 1.53 | -1.00 | 1.90 | -1.00 | 13.36 | 291.26 | -67.56 | 78.45 | 0.9195 | 123.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.97 | 12.83 | 288.98 | -69.83 | 78.93 | 0.9342 | 253.0 | 249.4 | |
| 2.24 | 2.60 | 3.22 | 3.73 | 12.38 | 288.05 | -70.77 | 79.36 | 0.9398 | 306.4 | 354.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
