SDO HMI 2011-08-26 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.10 | 53.50 | 10.32 | 27.33 | 7.54 | 344.17 | -14.09 | 87.17 | 0.2426 | 338.3 | 132.4 | |
|
previous
or next observation for the same group /

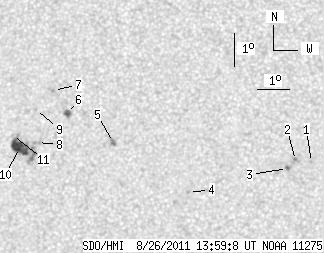

back to the solar disc SDO HMI 2011-08-26 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.40 | 7.18 | 351.91 | -6.35 | 88.42 | 0.1103 | -743.0 | -563.6 | |
| 0.00 | 3.41 | 0.00 | 1.70 | 7.24 | 351.42 | -6.84 | 88.02 | 0.1188 | -1045.0 | -839.8 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 6.99 | 351.18 | -7.08 | 90.07 | 0.1230 | -940.0 | -868.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 6.21 | 348.14 | -10.12 | 94.20 | 0.1760 | -974.0 | -764.6 | |
| 0.00 | 3.23 | 0.00 | 1.64 | 7.67 | 345.77 | -12.49 | 86.37 | 0.2158 | -1163.0 | -918.9 | |
| 1.88 | 4.13 | 0.96 | 2.11 | 8.51 | 344.29 | -13.97 | 83.09 | 0.2415 | -1017.8 | -795.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 9.19 | 343.82 | -14.44 | 80.52 | 0.2506 | 782.0 | 636.4 | |
| 0.00 | 3.59 | 0.00 | 1.84 | 7.60 | 343.38 | -14.88 | 86.94 | 0.2561 | 667.0 | 552.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 8.60 | 343.28 | -14.98 | 83.08 | 0.2587 | 792.0 | 454.8 | |
| 18.22 | 32.48 | 9.36 | 16.67 | 7.43 | 342.81 | -15.45 | 87.62 | 0.2655 | 1018.6 | 764.3 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 7.79 | 342.58 | -15.68 | 86.30 | 0.2695 | 603.0 | 456.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
