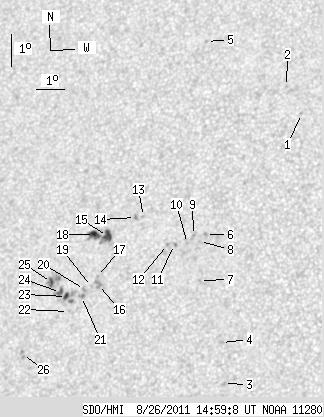

SDO HMI 2011-08-26 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.34 | 79.06 | 12.96 | 45.52 | 17.36 | 328.25 | -29.46 | 67.43 | 0.5107 | -74.9 | 133.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.70 | 22.45 | 334.37 | -23.34 | 53.12 | 0.4597 | 702.0 | 522.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 23.27 | 333.68 | -24.03 | 52.31 | 0.4747 | 651.0 | 477.7 | |
| 0.00 | 1.79 | 0.00 | 0.98 | 14.00 | 332.88 | -24.83 | 72.05 | 0.4300 | -670.0 | -557.5 | |
| 0.00 | 1.97 | 0.00 | 1.09 | 15.25 | 332.66 | -25.05 | 69.38 | 0.4382 | -783.0 | -532.8 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 24.54 | 330.46 | -27.25 | 53.08 | 0.5230 | 620.0 | 493.3 | |
| 0.00 | 1.61 | 0.00 | 0.90 | 18.53 | 331.62 | -26.09 | 63.18 | 0.4691 | -823.0 | -638.3 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 17.11 | 331.63 | -26.08 | 66.07 | 0.4615 | -742.0 | -539.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 18.30 | 331.44 | -26.26 | 63.76 | 0.4703 | -673.0 | -537.3 | |
| 0.00 | 3.32 | 0.00 | 1.87 | 18.48 | 331.20 | -26.51 | 63.58 | 0.4746 | -730.0 | -559.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 18.22 | 331.03 | -26.68 | 64.21 | 0.4756 | -560.0 | -491.1 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 18.16 | 330.57 | -27.13 | 64.63 | 0.4816 | -753.0 | -637.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 18.15 | 330.32 | -27.38 | 64.82 | 0.4849 | -629.0 | -526.8 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 18.96 | 329.31 | -28.40 | 63.90 | 0.5028 | -406.0 | -445.3 | |
| 0.00 | 2.15 | 0.00 | 1.24 | 18.92 | 329.03 | -28.68 | 64.17 | 0.5064 | -888.0 | -707.2 | |
| 7.00 | 19.20 | 4.04 | 11.11 | 18.27 | 328.12 | -29.59 | 65.89 | 0.5156 | -886.7 | -653.8 | |
| 0.00 | 4.22 | 0.00 | 2.43 | 16.78 | 328.06 | -29.65 | 68.73 | 0.5102 | 733.0 | 789.5 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 17.03 | 327.98 | -29.72 | 68.31 | 0.5123 | 708.0 | 561.0 | |
| 6.28 | -15.00 | 3.64 | -15.00 | 18.31 | 327.64 | -30.07 | 66.10 | 0.5224 | -715.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 16.71 | 327.82 | -29.89 | 68.99 | 0.5133 | 795.0 | 618.5 | |
| 0.00 | 1.79 | 0.00 | 1.04 | 16.60 | 327.58 | -30.13 | 69.30 | 0.5162 | 878.0 | 758.0 | |
| 0.00 | 2.42 | 0.00 | 1.40 | 16.38 | 327.51 | -30.20 | 69.75 | 0.5164 | 897.0 | 789.9 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 15.89 | 327.12 | -30.59 | 70.84 | 0.5202 | 606.0 | 503.9 | |
| 2.60 | 9.69 | 1.51 | 5.62 | 16.35 | 326.97 | -30.74 | 70.05 | 0.5239 | 804.7 | 695.4 | |
| 3.14 | 5.38 | 1.83 | 3.14 | 16.46 | 326.73 | -30.98 | 69.95 | 0.5276 | 710.6 | 614.9 | |
| 3.32 | 10.05 | 1.94 | 5.88 | 16.74 | 326.34 | -31.37 | 69.59 | 0.5339 | 778.4 | 359.0 | |
| 0.00 | 3.32 | 0.00 | 1.95 | 14.48 | 325.66 | -32.05 | 74.00 | 0.5366 | 688.0 | 713.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
