SDO HMI 2011-08-26 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.49 | 67.84 | 12.51 | 34.41 | 7.53 | 345.00 | -12.15 | 87.28 | 0.2100 | 427.4 | -116.6 | |
|
previous
or next observation for the same group /

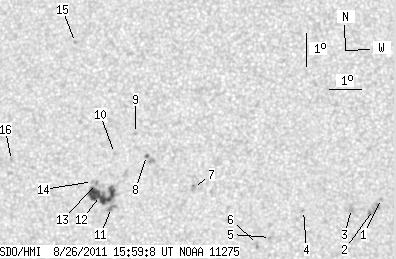

back to the solar disc SDO HMI 2011-08-26 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.80 | 7.47 | 351.57 | -5.58 | 85.38 | 0.0972 | -759.0 | -570.1 | |
| 0.00 | 7.45 | 0.00 | 3.71 | 7.14 | 351.33 | -5.82 | 88.87 | 0.1012 | -981.0 | -871.0 | |
| 0.00 | 4.31 | 0.00 | 2.15 | 7.16 | 350.66 | -6.50 | 88.72 | 0.1129 | -994.0 | -654.8 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 7.07 | 349.18 | -7.97 | 89.39 | 0.1383 | -855.0 | -611.4 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 6.24 | 348.18 | -8.98 | 94.72 | 0.1564 | -865.0 | -686.1 | |
| 0.00 | 2.24 | 0.00 | 1.13 | 6.02 | 347.78 | -9.37 | 95.82 | 0.1636 | -842.0 | -654.1 | |
| 0.00 | 2.96 | 0.00 | 1.50 | 7.70 | 345.76 | -11.40 | 86.02 | 0.1972 | -972.0 | -785.3 | |
| 1.26 | 4.84 | 0.64 | 2.46 | 8.63 | 344.26 | -12.90 | 82.12 | 0.2238 | -865.5 | -862.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 9.29 | 343.89 | -13.27 | 79.46 | 0.2314 | 845.0 | 567.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 8.66 | 343.25 | -13.91 | 82.43 | 0.2407 | 845.0 | 583.9 | |
| 0.00 | 4.04 | 0.00 | 2.06 | 7.03 | 343.21 | -13.94 | 89.27 | 0.2403 | 1115.0 | 891.3 | |
| 23.23 | 30.23 | 11.87 | 15.44 | 7.38 | 342.85 | -14.30 | 87.81 | 0.2463 | 1022.6 | 732.4 | |
| 0.00 | 1.88 | 0.00 | 0.96 | 7.74 | 342.71 | -14.44 | 86.36 | 0.2487 | 945.0 | 691.7 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 7.79 | 342.59 | -14.57 | 86.15 | 0.2509 | 691.0 | 476.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 11.99 | 341.85 | -15.31 | 70.73 | 0.2747 | 951.0 | 679.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 8.34 | 339.99 | -17.17 | 84.55 | 0.2947 | 623.0 | 436.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
