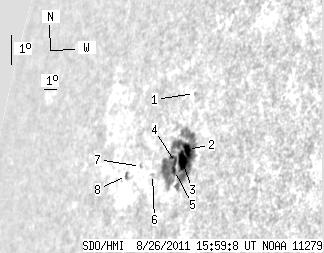

SDO HMI 2011-08-26 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.36 | 122.63 | 23.23 | 141.57 | 13.37 | 291.86 | -65.29 | 78.51 | 0.9036 | -387.8 | -67.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.72 | 15.42 | 291.82 | -65.34 | 76.25 | 0.9037 | 506.0 | 482.6 | |
| 6.46 | 116.44 | 7.30 | 133.68 | 13.72 | 292.25 | -64.90 | 78.14 | 0.9008 | -700.3 | -98.6 | |
| 9.24 | -2.00 | 10.52 | -2.00 | 13.33 | 292.08 | -65.07 | 78.57 | 0.9021 | -552.6 | 999999 | |
| 2.15 | -2.00 | 2.50 | -2.00 | 13.25 | 291.60 | -65.56 | 78.65 | 0.9056 | -156.1 | 999999 | |
| 2.51 | -2.00 | 2.91 | -2.00 | 13.00 | 291.65 | -65.51 | 78.92 | 0.9053 | -334.1 | 999999 | |
| 0.00 | 1.35 | 0.00 | 1.65 | 12.70 | 290.08 | -67.07 | 79.19 | 0.9164 | 503.0 | 453.9 | |
| 0.00 | 1.61 | 0.00 | 2.06 | 12.83 | 289.02 | -68.13 | 79.00 | 0.9234 | 365.0 | 301.3 | |
| 0.00 | 2.60 | 0.00 | 3.46 | 12.44 | 288.04 | -69.11 | 79.38 | 0.9298 | 353.0 | 348.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
