SDO HMI 2011-08-26 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.13 | 94.77 | 13.90 | 54.53 | 17.34 | 327.76 | -29.40 | 67.43 | 0.5098 | 124.6 | 216.5 | |
|
previous
or next observation for the same group /

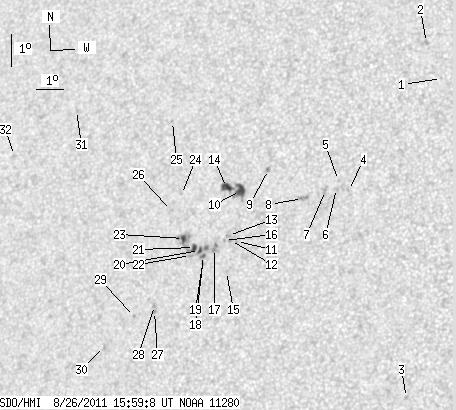

back to the solar disc SDO HMI 2011-08-26 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.45 | 22.12 | 334.73 | -22.43 | 52.78 | 0.4457 | 646.0 | 407.7 | |
| 0.00 | 2.24 | 0.00 | 1.25 | 23.22 | 334.00 | -23.16 | 51.50 | 0.4637 | 806.0 | 592.3 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 12.26 | 334.79 | -22.37 | 74.98 | 0.3867 | -799.0 | -628.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 18.49 | 332.03 | -25.12 | 62.54 | 0.4556 | -780.0 | -587.7 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 18.78 | 331.63 | -25.52 | 62.26 | 0.4628 | -580.0 | -417.0 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 18.53 | 331.60 | -25.55 | 62.79 | 0.4618 | -730.0 | -619.7 | |
| 0.00 | 3.86 | 0.00 | 2.16 | 18.45 | 331.23 | -25.93 | 63.23 | 0.4665 | -682.0 | -554.1 | |
| 0.00 | 4.58 | 0.00 | 2.57 | 18.16 | 330.45 | -26.70 | 64.35 | 0.4756 | -574.0 | -577.3 | |
| 0.00 | 2.24 | 0.00 | 1.28 | 18.99 | 329.08 | -28.07 | 63.65 | 0.4985 | -819.0 | -649.5 | |
| 9.24 | 22.70 | 5.30 | 13.05 | 18.28 | 328.19 | -28.96 | 65.53 | 0.5072 | -922.0 | -665.6 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 16.71 | 328.32 | -28.83 | 68.46 | 0.4985 | 882.0 | 678.5 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 16.73 | 328.10 | -29.05 | 68.54 | 0.5017 | 992.0 | 812.9 | |
| 0.00 | 1.70 | 0.00 | 0.98 | 16.88 | 328.00 | -29.15 | 68.30 | 0.5037 | 757.0 | 699.8 | |
| 6.19 | -10.00 | 3.57 | -10.00 | 18.35 | 327.67 | -29.49 | 65.71 | 0.5146 | -727.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 15.77 | 328.11 | -29.04 | 70.39 | 0.4979 | 715.0 | 531.7 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 16.72 | 327.89 | -29.27 | 68.67 | 0.5047 | 803.0 | 626.5 | |
| 0.00 | 4.75 | 0.00 | 2.73 | 16.45 | 327.57 | -29.59 | 69.34 | 0.5081 | 959.0 | 825.7 | |
| 1.35 | 8.34 | 0.77 | 4.81 | 16.21 | 327.21 | -29.95 | 69.95 | 0.5123 | 758.2 | 739.6 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 15.97 | 327.21 | -29.94 | 70.42 | 0.5113 | 710.0 | 493.1 | |
| 1.88 | -18.00 | 1.09 | -18.00 | 16.36 | 327.04 | -30.12 | 69.76 | 0.5152 | 850.3 | 999999 | |
| 3.23 | 19.11 | 1.87 | 11.09 | 16.44 | 326.84 | -30.31 | 69.69 | 0.5182 | 723.0 | 542.1 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 16.19 | 326.74 | -30.42 | 70.22 | 0.5188 | 704.0 | 555.8 | |
| 2.24 | -21.00 | 1.30 | -21.00 | 16.69 | 326.39 | -30.76 | 69.43 | 0.5254 | 617.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 18.03 | 326.07 | -31.09 | 67.12 | 0.5350 | 619.0 | 483.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 20.26 | 325.25 | -31.90 | 63.63 | 0.5555 | 596.0 | 496.4 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 17.52 | 325.79 | -31.36 | 68.18 | 0.5367 | 693.0 | 575.1 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 14.40 | 325.71 | -31.44 | 73.96 | 0.5278 | 906.0 | 684.9 | |
| 0.00 | 1.97 | 0.00 | 1.15 | 14.58 | 325.68 | -31.47 | 73.63 | 0.5287 | 831.0 | 592.0 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 14.20 | 325.01 | -32.15 | 74.54 | 0.5373 | 574.0 | 512.7 | |
| 0.00 | 1.61 | 0.00 | 0.96 | 13.22 | 324.05 | -33.11 | 76.59 | 0.5488 | 619.0 | 523.6 | |
| 0.00 | 1.35 | 0.00 | 0.83 | 20.36 | 321.49 | -35.67 | 65.28 | 0.6040 | 710.0 | 522.2 | |
| 0.00 | 1.88 | 0.00 | 1.19 | 18.80 | 319.41 | -37.75 | 68.54 | 0.6249 | 232.0 | 327.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
