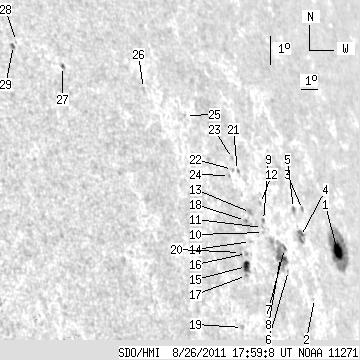

SDO HMI 2011-08-26 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.72 | 140.28 | 32.24 | 165.71 | 17.46 | 62.08 | 66.03 | 286.07 | 0.9076 | -172.2 | -131.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.70 | 54.89 | 11.49 | 72.91 | 16.76 | 65.10 | 69.05 | 285.27 | 0.9286 | -668.4 | -76.2 | |
| 0.00 | 0.63 | 0.00 | 0.74 | 15.60 | 62.34 | 66.29 | 283.96 | 0.9104 | -343.0 | -317.3 | |
| 0.00 | 1.61 | 0.00 | 1.98 | 18.29 | 63.29 | 67.25 | 286.92 | 0.9169 | 102.0 | 73.7 | |
| 4.30 | 7.44 | 5.15 | 8.92 | 17.52 | 62.54 | 66.49 | 286.08 | 0.9118 | -444.7 | -249.9 | |
| 1.26 | 2.87 | 1.51 | 3.44 | 18.40 | 62.64 | 66.59 | 287.04 | 0.9125 | -341.3 | -302.7 | |
| 0.00 | 0.45 | 0.00 | 0.51 | 16.62 | 60.99 | 64.94 | 285.09 | 0.9008 | -426.0 | -370.0 | |
| 0.45 | 30.94 | 0.51 | 34.63 | 17.30 | 61.13 | 65.08 | 285.84 | 0.9019 | -486.2 | -551.2 | |
| 5.02 | -7.00 | 5.62 | -7.00 | 17.07 | 60.68 | 64.63 | 285.58 | 0.8985 | -591.0 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.88 | 18.28 | 60.23 | 64.18 | 286.95 | 0.8954 | -560.0 | -464.5 | |
| 0.00 | 0.63 | 0.00 | 0.69 | 17.93 | 59.99 | 63.94 | 286.56 | 0.8935 | -574.0 | -524.1 | |
| 0.00 | 1.08 | 0.00 | 1.18 | 18.08 | 60.02 | 63.97 | 286.73 | 0.8938 | -410.0 | -421.0 | |
| 0.00 | 1.17 | 0.00 | 1.29 | 18.81 | 60.37 | 64.32 | 287.53 | 0.8965 | -360.0 | -331.5 | |
| 0.00 | 2.96 | 0.00 | 3.19 | 18.61 | 59.50 | 63.46 | 287.34 | 0.8900 | 366.0 | 312.5 | |
| 0.00 | 1.08 | 0.00 | 1.14 | 17.76 | 58.94 | 62.90 | 286.39 | 0.8856 | 139.0 | 147.3 | |
| 5.92 | 7.26 | 6.13 | 7.52 | 17.05 | 58.23 | 62.19 | 285.60 | 0.8799 | 491.1 | 386.7 | |
| 0.00 | 2.42 | 0.00 | 2.52 | 17.43 | 58.46 | 62.41 | 286.03 | 0.8817 | 321.0 | 266.7 | |
| 0.00 | 1.35 | 0.00 | 1.39 | 16.78 | 58.08 | 62.03 | 285.30 | 0.8786 | 636.0 | 463.9 | |
| 0.36 | 4.84 | 0.38 | 5.15 | 18.41 | 59.01 | 62.96 | 287.13 | 0.8862 | 285.5 | 143.3 | |
| 0.00 | 1.88 | 0.00 | 1.88 | 15.27 | 57.01 | 60.96 | 283.58 | 0.8697 | 435.0 | 310.5 | |
| 0.00 | 3.23 | 0.00 | 3.33 | 17.50 | 58.09 | 62.04 | 286.12 | 0.8788 | 353.0 | 320.4 | |
| 0.00 | 1.08 | 0.00 | 1.16 | 19.95 | 59.50 | 63.46 | 288.84 | 0.8904 | 17.0 | 69.2 | |
| 0.00 | 1.26 | 0.00 | 1.34 | 20.01 | 59.19 | 63.14 | 288.93 | 0.8881 | 159.0 | 139.5 | |
| 0.00 | 1.17 | 0.00 | 1.26 | 20.34 | 59.43 | 63.38 | 289.28 | 0.8900 | 100.0 | 58.0 | |
| 0.00 | 1.08 | 0.00 | 1.14 | 19.86 | 58.86 | 62.81 | 288.77 | 0.8855 | 418.0 | 350.1 | |
| 0.00 | 0.90 | 0.00 | 0.91 | 21.94 | 57.30 | 61.26 | 291.24 | 0.8745 | 378.0 | 327.7 | |
| 0.00 | 1.79 | 0.00 | 1.72 | 23.02 | 55.29 | 59.25 | 292.67 | 0.8591 | 379.0 | 312.8 | |
| 0.81 | 2.06 | 0.70 | 1.80 | 24.16 | 51.09 | 55.05 | 294.57 | 0.8244 | -458.7 | -454.1 | |
| 0.00 | 0.72 | 0.00 | 0.60 | 25.16 | 49.11 | 53.06 | 296.14 | 0.8080 | 291.0 | 219.8 | |
| 0.90 | 1.79 | 0.75 | 1.49 | 25.05 | 48.87 | 52.82 | 296.06 | 0.8057 | 510.9 | 374.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
