SDO HMI 2011-08-26 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.17 | 0.00 | 3.40 | -18.45 | 356.28 | 0.24 | 180.53 | 0.4329 | -18.8 | -42.7 | |
|
previous
or next observation for the same group /

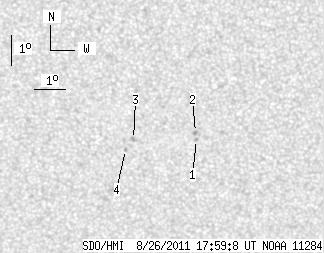

back to the solar disc SDO HMI 2011-08-26 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.43 | 357.37 | 1.33 | 182.92 | 0.4328 | 734.0 | 546.4 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -18.20 | 357.34 | 1.29 | 182.88 | 0.4291 | 950.0 | 767.2 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -18.43 | 355.36 | -0.68 | 178.49 | 0.4324 | -922.0 | -774.3 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.77 | 355.11 | -0.94 | 177.95 | 0.4378 | -837.0 | -670.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
