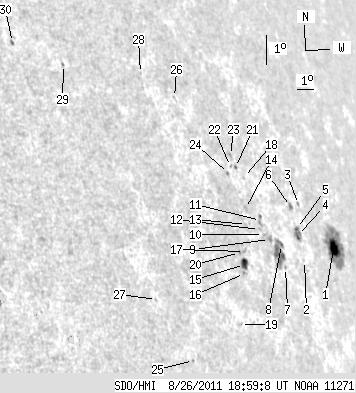

SDO HMI 2011-08-26 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.25 | 127.90 | 25.96 | 155.33 | 17.44 | 62.34 | 66.84 | 286.04 | 0.9131 | -117.0 | -163.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.25 | 53.09 | 11.15 | 72.25 | 16.77 | 65.10 | 69.60 | 285.28 | 0.9319 | -661.0 | -80.5 | |
| 0.00 | 0.45 | 0.00 | 0.55 | 16.68 | 62.52 | 67.02 | 285.15 | 0.9154 | -279.0 | -258.6 | |
| 0.00 | 1.52 | 0.00 | 1.91 | 18.36 | 63.30 | 67.81 | 286.99 | 0.9205 | 111.0 | 67.9 | |
| 2.96 | 7.62 | 3.61 | 9.31 | 17.47 | 62.52 | 67.02 | 286.01 | 0.9154 | -464.8 | -259.5 | |
| 1.43 | -4.00 | 1.75 | -4.00 | 17.68 | 62.59 | 67.10 | 286.25 | 0.9159 | -379.4 | 999999 | |
| 1.70 | 2.42 | 2.09 | 2.96 | 18.37 | 62.64 | 67.14 | 287.00 | 0.9162 | -343.7 | -275.4 | |
| 0.00 | 0.99 | 0.00 | 1.14 | 16.63 | 60.97 | 65.48 | 285.09 | 0.9047 | -503.0 | -448.0 | |
| 0.45 | 22.42 | 0.52 | 25.68 | 17.33 | 61.14 | 65.65 | 285.87 | 0.9059 | -472.6 | -581.6 | |
| 0.00 | 3.23 | 0.00 | 3.65 | 17.57 | 60.39 | 64.89 | 286.14 | 0.9005 | -625.0 | -570.1 | |
| 0.00 | 1.08 | 0.00 | 1.20 | 17.77 | 60.07 | 64.57 | 286.36 | 0.8982 | -476.0 | -428.8 | |
| 0.00 | 4.04 | 0.00 | 4.52 | 18.20 | 60.14 | 64.65 | 286.85 | 0.8988 | -496.0 | -470.1 | |
| 0.00 | 0.81 | 0.00 | 0.90 | 17.94 | 59.89 | 64.39 | 286.56 | 0.8969 | -469.0 | -493.9 | |
| 0.00 | 1.08 | 0.00 | 1.16 | 18.19 | 59.10 | 63.60 | 286.85 | 0.8911 | 270.0 | 220.5 | |
| 0.00 | 2.69 | 0.00 | 2.94 | 18.67 | 59.35 | 63.86 | 287.39 | 0.8930 | 240.0 | 192.0 | |
| 5.56 | 7.26 | 5.85 | 7.64 | 17.02 | 58.22 | 62.72 | 285.56 | 0.8841 | 509.0 | 331.5 | |
| 0.00 | 1.26 | 0.00 | 1.31 | 16.76 | 58.06 | 62.57 | 285.26 | 0.8828 | 581.0 | 487.5 | |
| 0.00 | 1.88 | 0.00 | 2.00 | 17.41 | 58.45 | 62.96 | 285.99 | 0.8860 | 319.0 | 266.0 | |
| 0.00 | 0.45 | 0.00 | 0.50 | 19.60 | 59.87 | 64.38 | 288.41 | 0.8971 | 383.0 | 425.2 | |
| 0.00 | 2.06 | 0.00 | 2.09 | 15.28 | 56.98 | 61.49 | 283.58 | 0.8740 | 497.0 | 316.6 | |
| 0.00 | 1.17 | 0.00 | 1.22 | 17.41 | 58.11 | 62.61 | 286.00 | 0.8833 | 358.0 | 396.5 | |
| 0.90 | 1.43 | 0.99 | 1.58 | 19.95 | 59.54 | 64.05 | 288.82 | 0.8948 | 141.4 | 70.5 | |
| 0.00 | 0.81 | 0.00 | 0.88 | 20.02 | 59.22 | 63.73 | 288.90 | 0.8924 | 221.0 | 185.6 | |
| 0.00 | 2.51 | 0.00 | 2.76 | 20.34 | 59.47 | 63.97 | 289.26 | 0.8943 | 12.0 | -12.1 | |
| 0.00 | 1.26 | 0.00 | 1.35 | 19.83 | 58.93 | 63.44 | 288.70 | 0.8902 | 427.0 | 301.8 | |
| 0.00 | 0.90 | 0.00 | 0.83 | 14.50 | 53.67 | 58.18 | 282.72 | 0.8454 | 410.0 | 355.0 | |
| 0.00 | 1.17 | 0.00 | 1.19 | 22.46 | 57.07 | 61.58 | 291.80 | 0.8773 | 252.0 | 227.9 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 16.53 | 52.38 | 56.89 | 285.19 | 0.8341 | 468.0 | 412.7 | |
| 0.00 | 0.81 | 0.00 | 0.79 | 23.40 | 55.48 | 59.99 | 293.02 | 0.8655 | 203.0 | 267.1 | |
| 0.00 | 1.70 | 0.00 | 1.50 | 24.13 | 51.17 | 55.68 | 294.43 | 0.8300 | -577.0 | -397.2 | |
| 0.00 | 1.52 | 0.00 | 1.28 | 25.07 | 48.83 | 53.34 | 295.98 | 0.8104 | 502.0 | 380.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
