SDO HMI 2011-08-26 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.61 | 89.26 | 16.19 | 50.45 | 16.98 | 327.99 | -27.50 | 67.14 | 0.4813 | 79.8 | 120.2 | |
|
previous
or next observation for the same group /

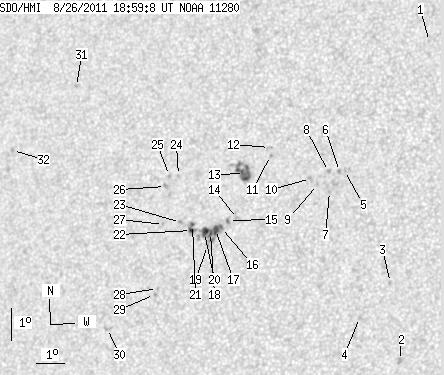

back to the solar disc SDO HMI 2011-08-26 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.35 | 22.64 | 334.12 | -21.38 | 50.60 | 0.4371 | 507.0 | 459.1 | |
| 0.00 | 2.96 | 0.00 | 1.58 | 12.78 | 334.32 | -21.17 | 73.00 | 0.3699 | -838.0 | -691.3 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 15.14 | 333.79 | -21.70 | 67.36 | 0.3884 | -589.0 | -547.8 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 14.03 | 332.86 | -22.63 | 70.75 | 0.3972 | -609.0 | -444.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 18.50 | 331.78 | -23.71 | 61.37 | 0.4362 | -859.0 | -677.1 | |
| 0.00 | 1.88 | 0.00 | 1.04 | 18.46 | 331.62 | -23.88 | 61.60 | 0.4383 | -893.0 | -737.4 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 17.83 | 331.36 | -24.14 | 63.15 | 0.4381 | -726.0 | -589.0 | |
| 0.00 | 2.06 | 0.00 | 1.14 | 18.45 | 331.23 | -24.26 | 61.96 | 0.4435 | -792.0 | -579.1 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 18.03 | 330.91 | -24.58 | 63.10 | 0.4455 | -715.0 | -519.5 | |
| 0.00 | 2.42 | 0.00 | 1.34 | 18.20 | 330.64 | -24.86 | 62.95 | 0.4502 | -750.0 | -562.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 18.84 | 329.12 | -26.38 | 62.80 | 0.4747 | -804.0 | -589.2 | |
| 0.00 | 2.15 | 0.00 | 1.21 | 19.08 | 329.04 | -26.45 | 62.38 | 0.4771 | -741.0 | -651.5 | |
| 12.56 | 19.46 | 7.09 | 11.01 | 18.23 | 328.29 | -27.21 | 64.56 | 0.4828 | -938.6 | -636.0 | |
| 0.00 | 2.15 | 0.00 | 1.21 | 16.84 | 328.27 | -27.23 | 67.35 | 0.4765 | 731.0 | 729.0 | |
| 0.00 | 2.33 | 0.00 | 1.32 | 16.76 | 327.96 | -27.54 | 67.68 | 0.4805 | 825.0 | 740.5 | |
| 1.52 | 28.97 | 0.86 | 16.43 | 16.53 | 327.74 | -27.75 | 68.26 | 0.4825 | 853.4 | 738.9 | |
| 3.95 | -16.00 | 2.23 | -16.00 | 16.46 | 327.54 | -27.95 | 68.51 | 0.4851 | 1018.7 | 999999 | |
| 2.51 | -16.00 | 1.42 | -16.00 | 16.36 | 327.38 | -28.12 | 68.80 | 0.4870 | 981.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 15.95 | 327.33 | -28.16 | 69.63 | 0.4860 | 709.0 | 503.0 | |
| 4.75 | -16.00 | 2.70 | -16.00 | 16.35 | 327.16 | -28.33 | 68.94 | 0.4900 | 868.0 | 999999 | |
| 1.17 | -16.00 | 0.66 | -16.00 | 16.57 | 326.70 | -28.80 | 68.74 | 0.4974 | 521.5 | 999999 | |
| 2.15 | -16.00 | 1.23 | -16.00 | 16.38 | 326.69 | -28.80 | 69.11 | 0.4968 | 896.3 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.98 | 16.60 | 326.26 | -29.24 | 68.89 | 0.5038 | 768.0 | 611.4 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 18.04 | 325.93 | -29.56 | 66.34 | 0.5142 | 789.0 | 564.3 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 18.02 | 325.60 | -29.89 | 66.56 | 0.5186 | 687.0 | 521.0 | |
| 0.00 | 2.33 | 0.00 | 1.35 | 17.67 | 325.52 | -29.97 | 67.24 | 0.5183 | 761.0 | 606.6 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 16.50 | 325.65 | -29.84 | 69.37 | 0.5118 | 439.0 | 460.4 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 14.54 | 325.75 | -29.75 | 73.11 | 0.5039 | 963.0 | 738.3 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 14.35 | 325.67 | -29.83 | 73.51 | 0.5045 | 925.0 | 768.3 | |
| 0.00 | 3.14 | 0.00 | 1.82 | 13.22 | 324.13 | -31.37 | 76.18 | 0.5239 | 716.0 | 551.6 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 20.54 | 321.53 | -33.97 | 64.23 | 0.5832 | 459.0 | 463.3 | |
| 0.00 | 1.43 | 0.00 | 0.89 | 18.40 | 319.54 | -35.95 | 68.56 | 0.6007 | 791.0 | 629.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
