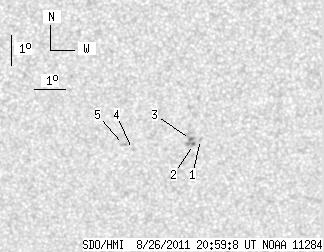

SDO HMI 2011-08-26 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.43 | 13.46 | 1.33 | 7.38 | -18.40 | 357.07 | 2.69 | 185.90 | 0.4343 | 101.9 | 304.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.69 | -18.30 | 357.79 | 3.41 | 187.50 | 0.4338 | 809.0 | 616.1 | |
| 1.17 | 9.15 | 0.64 | 5.02 | -18.46 | 357.57 | 3.19 | 186.97 | 0.4360 | 764.9 | 672.4 | |
| 1.26 | -2.00 | 0.69 | -2.00 | -18.30 | 357.47 | 3.09 | 186.81 | 0.4332 | 871.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -18.62 | 355.63 | 1.24 | 182.70 | 0.4359 | -560.0 | -477.6 | |
| 0.00 | 2.15 | 0.00 | 1.18 | -18.45 | 355.34 | 0.95 | 182.09 | 0.4330 | -899.0 | -698.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
