SDO HMI 2011-08-26 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.04 | 134.20 | 24.15 | 134.59 | 13.36 | 291.67 | -61.06 | 78.63 | 0.8704 | -452.8 | -163.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-26 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

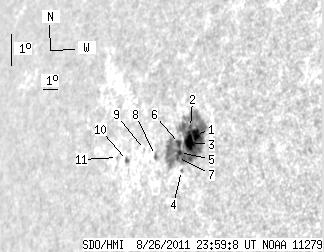

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.28 | 126.66 | 6.18 | 126.39 | 13.65 | 292.19 | -60.54 | 78.30 | 0.8660 | -918.3 | -187.5 | |
| 1.26 | -1.00 | 1.25 | -1.00 | 13.82 | 291.80 | -60.94 | 78.10 | 0.8694 | -286.1 | 999999 | |
| 8.79 | -1.00 | 8.72 | -1.00 | 13.37 | 291.93 | -60.80 | 78.62 | 0.8683 | -692.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.89 | 12.49 | 291.78 | -60.95 | 79.64 | 0.8697 | -586.0 | -502.4 | |
| 1.70 | -1.00 | 1.72 | -1.00 | 13.01 | 291.43 | -61.30 | 79.03 | 0.8725 | -515.7 | 999999 | |
| 3.14 | -1.00 | 3.17 | -1.00 | 13.28 | 291.32 | -61.41 | 78.72 | 0.8734 | -271.2 | 999999 | |
| 0.90 | -1.00 | 0.90 | -1.00 | 12.85 | 291.37 | -61.36 | 79.21 | 0.8730 | -470.7 | 999999 | |
| 0.00 | 2.24 | 0.00 | 2.36 | 12.75 | 289.94 | -62.79 | 79.29 | 0.8847 | 602.0 | 513.1 | |
| 0.00 | 0.63 | 0.00 | 0.68 | 12.85 | 289.13 | -63.60 | 79.16 | 0.8910 | 292.0 | 295.9 | |
| 1.97 | 2.42 | 2.21 | 2.72 | 12.40 | 288.12 | -64.61 | 79.63 | 0.8988 | 404.8 | 398.6 | |
| 0.00 | 1.35 | 0.00 | 1.55 | 12.41 | 287.37 | -65.36 | 79.59 | 0.9043 | 294.0 | 247.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
