SDO HMI 2011-08-27 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.33 | 82.83 | 23.08 | 119.43 | 17.09 | 63.13 | 70.95 | 285.68 | 0.9390 | -214.6 | -179.8 | |
|
previous
or next observation for the same group /

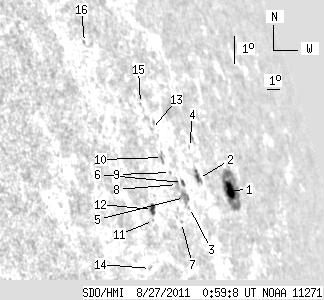

back to the solar disc SDO HMI 2011-08-27 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.72 | 43.06 | 12.17 | 68.55 | 16.77 | 65.11 | 72.92 | 285.38 | 0.9506 | -530.2 | -80.3 | |
| 2.51 | 6.01 | 3.50 | 8.40 | 17.45 | 62.57 | 70.39 | 286.02 | 0.9365 | -322.0 | -190.6 | |
| 0.00 | 0.45 | 0.00 | 0.59 | 16.70 | 61.11 | 68.93 | 285.19 | 0.9277 | -467.0 | -429.4 | |
| 0.00 | 0.81 | 0.00 | 1.13 | 18.43 | 62.60 | 70.42 | 287.07 | 0.9366 | -234.0 | -236.2 | |
| 0.00 | 9.33 | 0.00 | 12.18 | 17.03 | 60.93 | 68.75 | 285.55 | 0.9266 | -667.0 | -580.3 | |
| 1.70 | 2.33 | 2.24 | 3.07 | 17.49 | 61.12 | 68.94 | 286.04 | 0.9277 | -436.1 | -466.3 | |
| 0.00 | 1.08 | 0.00 | 1.36 | 16.34 | 60.14 | 67.95 | 284.78 | 0.9216 | 149.0 | 92.4 | |
| 0.00 | 4.40 | 0.00 | 5.66 | 17.47 | 60.67 | 68.48 | 286.02 | 0.9249 | -602.0 | -536.7 | |
| 0.00 | 1.08 | 0.00 | 1.37 | 17.89 | 60.39 | 68.21 | 286.46 | 0.9231 | -480.0 | -439.8 | |
| 0.00 | 4.04 | 0.00 | 5.09 | 18.39 | 60.11 | 67.93 | 287.01 | 0.9213 | -557.0 | -422.4 | |
| 0.00 | 0.63 | 0.00 | 0.73 | 16.63 | 58.06 | 65.88 | 285.08 | 0.9075 | 408.0 | 410.3 | |
| 4.40 | 5.11 | 5.17 | 6.01 | 16.96 | 58.21 | 66.03 | 285.45 | 0.9085 | 394.1 | 209.2 | |
| 0.00 | 1.08 | 0.00 | 1.35 | 19.30 | 59.94 | 67.76 | 288.01 | 0.9202 | 616.0 | 389.6 | |
| 0.00 | 1.53 | 0.00 | 1.71 | 15.25 | 56.96 | 64.78 | 283.54 | 0.8996 | 428.0 | 245.3 | |
| 0.00 | 0.81 | 0.00 | 1.00 | 20.15 | 59.75 | 67.57 | 288.94 | 0.9190 | 108.0 | 110.7 | |
| 0.00 | 1.08 | 0.00 | 1.23 | 22.40 | 57.18 | 65.00 | 291.49 | 0.9023 | 288.0 | 196.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
