SDO HMI 2011-08-27 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.45 | 80.58 | 17.29 | 40.34 | 7.60 | 344.14 | -8.04 | 88.77 | 0.1402 | 382.8 | -132.3 | |
|
previous
or next observation for the same group /

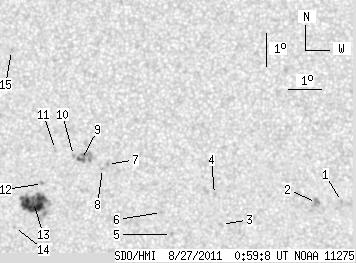

back to the solar disc SDO HMI 2011-08-27 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.58 | 7.36 | 352.23 | 0.04 | 350.63 | 0.0047 | -886.0 | -693.7 | |
| 0.00 | 5.65 | 0.00 | 2.80 | 7.32 | 351.46 | -0.72 | 71.71 | 0.0132 | -1085.0 | -919.7 | |
| 0.00 | 1.44 | 0.00 | 0.71 | 6.65 | 348.57 | -3.62 | 96.84 | 0.0634 | -755.0 | -494.8 | |
| 0.00 | 1.79 | 0.00 | 0.89 | 7.55 | 348.35 | -3.84 | 82.83 | 0.0672 | -668.0 | -546.0 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 6.33 | 347.04 | -5.14 | 98.18 | 0.0904 | -934.0 | -733.9 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 6.99 | 346.73 | -5.45 | 90.71 | 0.0948 | -953.0 | -797.4 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.42 | 345.05 | -7.14 | 78.86 | 0.1258 | -1031.0 | -839.3 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 8.30 | 344.89 | -7.29 | 80.02 | 0.1280 | -900.0 | -666.5 | |
| 2.51 | 11.84 | 1.26 | 5.92 | 8.56 | 344.24 | -7.94 | 78.89 | 0.1399 | -943.6 | -872.7 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 8.68 | 343.99 | -8.19 | 78.39 | 0.1445 | -893.0 | -735.9 | |
| 0.00 | 1.61 | 0.00 | 0.81 | 8.85 | 343.43 | -8.75 | 77.94 | 0.1545 | 735.0 | 582.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 7.81 | 343.05 | -9.13 | 84.86 | 0.1586 | 969.0 | 785.0 | |
| 31.94 | 47.28 | 16.03 | 23.73 | 7.23 | 342.78 | -9.40 | 88.55 | 0.1628 | 1095.1 | 688.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 6.46 | 342.21 | -9.97 | 93.03 | 0.1731 | 850.0 | 567.9 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 11.82 | 341.96 | -10.22 | 64.06 | 0.1940 | 781.0 | 620.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
