SDO HMI 2011-08-27 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.29 | 150.53 | 25.01 | 148.72 | 13.25 | 291.56 | -60.62 | 78.76 | 0.8667 | -481.2 | -134.6 | |
|
previous
or next observation for the same group /

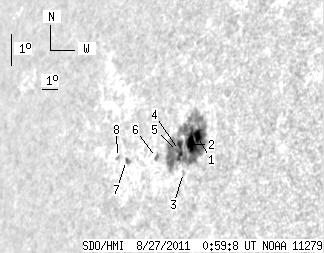

back to the solar disc SDO HMI 2011-08-27 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.83 | 141.75 | 5.64 | 139.35 | 13.62 | 292.22 | -59.96 | 78.34 | 0.8611 | -957.4 | -158.9 | |
| 8.97 | -1.00 | 8.76 | -1.00 | 13.34 | 291.90 | -60.29 | 78.67 | 0.8639 | -731.0 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.58 | 12.46 | 291.81 | -60.38 | 79.68 | 0.8648 | -543.0 | -449.6 | |
| 8.61 | -1.00 | 8.56 | -1.00 | 13.09 | 291.30 | -60.88 | 78.95 | 0.8690 | -370.4 | 999999 | |
| 0.27 | -1.00 | 0.27 | -1.00 | 13.04 | 291.19 | -61.00 | 79.00 | 0.8700 | 59.3 | 999999 | |
| 0.00 | 2.51 | 0.00 | 2.60 | 12.72 | 289.94 | -62.25 | 79.34 | 0.8803 | 584.0 | 506.6 | |
| 1.61 | 2.87 | 1.78 | 3.16 | 12.42 | 287.99 | -64.20 | 79.63 | 0.8957 | 281.1 | 446.8 | |
| 0.00 | 1.79 | 0.00 | 2.03 | 12.44 | 287.32 | -64.86 | 79.58 | 0.9007 | 397.0 | 285.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
