SDO HMI 2011-08-27 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.10 | 10.86 | 3.37 | 5.99 | -18.26 | 356.77 | 5.13 | 191.18 | 0.4384 | 155.7 | -66.8 | |
|
previous
or next observation for the same group /

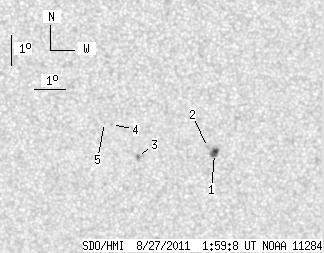

back to the solar disc SDO HMI 2011-08-27 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.93 | 6.10 | 2.73 | 3.37 | -18.45 | 357.86 | 6.22 | 193.43 | 0.4444 | 822.9 | 827.1 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -18.25 | 357.62 | 5.99 | 193.06 | 0.4405 | 810.0 | 594.6 | |
| 1.17 | 1.97 | 0.64 | 1.09 | -18.52 | 355.39 | 3.75 | 188.18 | 0.4383 | -792.9 | -697.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.45 | 354.54 | 2.90 | 186.64 | 0.4197 | -736.0 | -565.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.38 | 354.32 | 2.68 | 186.15 | 0.4182 | -821.0 | -663.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
