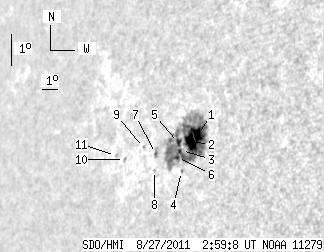

SDO HMI 2011-08-27 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.43 | 155.71 | 22.29 | 149.01 | 13.31 | 291.67 | -59.41 | 78.69 | 0.8562 | -471.3 | -138.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.01 | 146.63 | 5.65 | 139.79 | 13.61 | 292.22 | -58.86 | 78.35 | 0.8514 | -962.5 | -167.4 | |
| 10.41 | -1.00 | 9.85 | -1.00 | 13.36 | 291.90 | -59.19 | 78.64 | 0.8543 | -724.6 | 999999 | |
| 0.72 | -1.00 | 0.69 | -1.00 | 13.04 | 291.47 | -59.62 | 79.02 | 0.8581 | -418.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.11 | 12.42 | 291.71 | -59.37 | 79.75 | 0.8561 | -576.0 | -420.4 | |
| 3.41 | -1.00 | 3.29 | -1.00 | 13.26 | 291.20 | -59.89 | 78.76 | 0.8605 | -319.4 | 999999 | |
| 1.62 | -1.00 | 1.55 | -1.00 | 12.81 | 291.31 | -59.77 | 79.29 | 0.8595 | -463.7 | 999999 | |
| 1.26 | 3.77 | 1.26 | 3.78 | 12.78 | 289.92 | -61.16 | 79.30 | 0.8714 | 501.3 | 503.2 | |
| 0.00 | 0.90 | 0.00 | 0.90 | 12.27 | 290.07 | -61.02 | 79.89 | 0.8703 | 461.0 | 405.4 | |
| 0.00 | 0.90 | 0.00 | 0.92 | 12.88 | 289.09 | -61.99 | 79.17 | 0.8782 | 392.0 | 352.7 | |
| 0.00 | 1.44 | 0.00 | 1.53 | 12.39 | 288.01 | -63.07 | 79.70 | 0.8870 | 444.0 | 352.2 | |
| 0.00 | 0.90 | 0.00 | 0.98 | 12.44 | 287.36 | -63.72 | 79.62 | 0.8921 | 418.0 | 357.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
