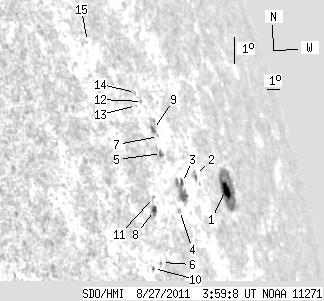

SDO HMI 2011-08-27 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.93 | 80.60 | 18.31 | 124.79 | 17.16 | 63.01 | 72.47 | 285.79 | 0.9472 | -181.7 | -117.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.37 | 40.12 | 10.97 | 70.10 | 16.80 | 65.14 | 74.60 | 285.47 | 0.9589 | -516.2 | -12.8 | |
| 0.00 | 3.68 | 0.00 | 5.53 | 17.55 | 62.55 | 72.01 | 286.16 | 0.9456 | -376.0 | -221.3 | |
| 1.97 | 16.42 | 2.78 | 22.94 | 17.49 | 61.18 | 70.64 | 286.06 | 0.9379 | -475.3 | -571.2 | |
| 0.00 | 2.24 | 0.00 | 3.04 | 16.71 | 60.23 | 69.69 | 285.21 | 0.9324 | -149.0 | -139.4 | |
| 0.00 | 2.60 | 0.00 | 3.51 | 18.53 | 60.13 | 69.59 | 287.16 | 0.9317 | -579.0 | -462.7 | |
| 0.00 | 1.17 | 0.00 | 1.43 | 15.36 | 57.68 | 67.14 | 283.70 | 0.9162 | 195.0 | 145.4 | |
| 0.00 | 0.63 | 0.00 | 0.86 | 19.04 | 60.33 | 69.79 | 287.72 | 0.9328 | -249.0 | -318.7 | |
| 2.87 | 6.10 | 3.59 | 7.60 | 16.94 | 58.20 | 67.66 | 285.43 | 0.9196 | 361.0 | 253.0 | |
| 0.72 | 2.42 | 0.97 | 3.26 | 19.29 | 60.10 | 69.56 | 287.99 | 0.9315 | 502.2 | 354.8 | |
| 0.00 | 1.35 | 0.00 | 1.60 | 15.26 | 56.96 | 66.42 | 283.57 | 0.9114 | 277.0 | 194.9 | |
| 0.00 | 1.62 | 0.00 | 2.03 | 17.33 | 58.41 | 67.87 | 285.85 | 0.9209 | 314.0 | 278.6 | |
| 0.00 | 0.45 | 0.00 | 0.60 | 20.21 | 59.96 | 69.42 | 288.97 | 0.9306 | 205.0 | 163.0 | |
| 0.00 | 0.72 | 0.00 | 0.94 | 20.15 | 59.35 | 68.82 | 288.91 | 0.9269 | 192.0 | 158.5 | |
| 0.00 | 0.45 | 0.00 | 0.59 | 20.53 | 59.64 | 69.10 | 289.32 | 0.9287 | -152.0 | -133.2 | |
| 0.00 | 0.63 | 0.00 | 0.76 | 22.44 | 57.30 | 66.76 | 291.46 | 0.9142 | 197.0 | 249.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
