SDO HMI 2011-08-27 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.63 | 0.00 | 8.51 | 18.44 | 357.90 | 7.91 | 328.95 | 0.2496 | -334.5 | -222.8 | |
|
previous
or next observation for the same group /

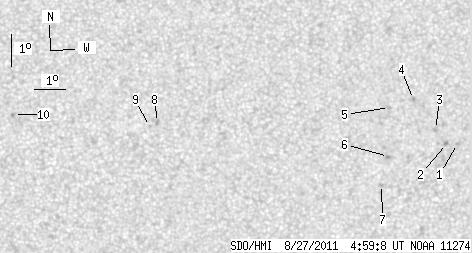

back to the solar disc SDO HMI 2011-08-27 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.65 | 18.05 | 2.49 | 12.50 | 313.12 | 0.2833 | -837.0 | -667.1 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 18.05 | 2.13 | 12.15 | 313.94 | 0.2790 | -948.0 | -788.4 | |
| 0.00 | 1.97 | 0.00 | 1.02 | 18.50 | 1.81 | 11.82 | 315.87 | 0.2802 | -880.0 | -718.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 19.44 | 1.15 | 11.16 | 319.80 | 0.2841 | -864.0 | -684.7 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 19.21 | 0.35 | 10.36 | 321.27 | 0.2727 | -752.0 | -598.2 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 17.70 | 0.23 | 10.24 | 317.67 | 0.2526 | -918.0 | -754.9 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 16.84 | 359.96 | 9.97 | 315.93 | 0.2392 | -776.0 | -636.7 | |
| 0.00 | 2.51 | 0.00 | 1.27 | 18.85 | 352.85 | 2.86 | 346.95 | 0.2102 | 930.0 | 761.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 18.73 | 352.59 | 2.60 | 347.96 | 0.2072 | 756.0 | 580.5 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 19.10 | 348.24 | -1.75 | 7.90 | 0.2110 | 944.0 | 786.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
