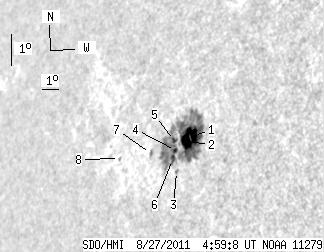

SDO HMI 2011-08-27 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.34 | 157.88 | 20.61 | 146.27 | 13.27 | 291.70 | -58.29 | 78.75 | 0.8463 | -599.2 | -163.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-27 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.19 | 152.31 | 5.65 | 140.87 | 13.57 | 292.21 | -57.78 | 78.40 | 0.8416 | -1032.0 | -180.2 | |
| 9.78 | -1.00 | 9.01 | -1.00 | 13.34 | 291.82 | -58.17 | 78.67 | 0.8452 | -701.3 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.66 | 12.40 | 291.64 | -58.35 | 79.79 | 0.8469 | -572.0 | -459.6 | |
| 1.53 | -1.00 | 1.42 | -1.00 | 13.01 | 291.35 | -58.64 | 79.06 | 0.8495 | -504.5 | 999999 | |
| 1.97 | -1.00 | 1.85 | -1.00 | 13.31 | 291.18 | -58.81 | 78.71 | 0.8510 | -309.2 | 999999 | |
| 2.87 | -1.00 | 2.68 | -1.00 | 12.73 | 291.28 | -58.71 | 79.39 | 0.8501 | -447.4 | 999999 | |
| 0.00 | 2.33 | 0.00 | 2.27 | 12.77 | 289.91 | -60.08 | 79.33 | 0.8622 | 633.0 | 572.0 | |
| 0.00 | 1.44 | 0.00 | 1.47 | 12.42 | 288.05 | -61.94 | 79.70 | 0.8779 | 430.0 | 373.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
